Knipex Mini pliers wrench pliers and a wrench in a single tool chrome-plated, plastic coated 125 mm 86 03 125 by Amazon.co.uk
- • Replaces the need for sets of metric and imperial spanners
- • Smooth jaws for damage free installation of plated fittings - working directly on chrome!
- • Also excellent for gripping, holding, pressing and bending workpieces
- • Zero backlash jaw pressure prevents damage to edges of sensitive components
- • Fast adjustment by pushing a button directly on the workpiece
Compare Knipex Mini pliers wrench pliers and a wrench in a single tool chrome-plated, plastic coated 125 mm 86 03 125 with other products:
Description
The Knipex 86 03 125 mini pliers wrench – for precision engineering applications
The mini pliers wrench is just 125 mm long, and is therefore suitable for working on precision screw joints, for example in model making. It is also ideal for small pipe and hose connections in industry. It grips all widths up to 23 mm or 7/8 inch, replaces a set of spanners – metric and imperial – and can be adjusted quickly and directly on the component at the push of a button. The hinge bolt then engages securely, preventing inadvertent adjustment. When under tension, the smooth gripping jaws are parallel to each other in every position, and hold the component accurately and with zero backlash, without damaging edges and sensitive surfaces such as chrome or brass.
10-fold reinforcement of manual force
The excellent mechanics of the mini pliers wrench reinforce the manual force applied 10 times over. It also holds components as securely as a bench vice. Even flat objects can be gripped extremely well and processed simply thanks to the high pressing force and parallel jaws. The proven ergonomics of the handles with plastic coating guarantee an agreeably comfortable, non-slip grip – even with frequent use.
Work according to the ratchet principle: the ratchet function between the gripping jaws permits screwing in a similar way to a ratchet, enabling screw connections to be loosened or tightened quickly without the need to reapply the wrench after every screw movement.
Many additional application options
The mini pliers wrench grips, screws, bends and presses anything you cannot hold with your fingertips - including hot, sharp-edged, dirty, small or slippery objects. It holds objects powerfully and securely at all times, while also enabling sensitive and measured insertion, such as of connector halves or assembly components. It is a useful helper when working with contact adhesives (pressing to activate the adhesive force) or when breaking open cable ties.
Knipex quality: the 86 03 125 mini pliers wrench is manufactured in the Knipex factory in Wuppertal-Cronenberg using quality materials. As with the other models of pliers from the Knipex think tank, it stands for top quality and therefore - when used correctly - also for exceptional durability.

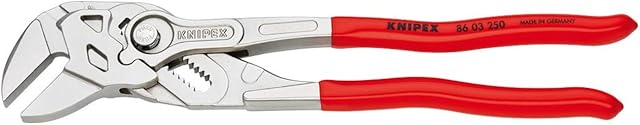

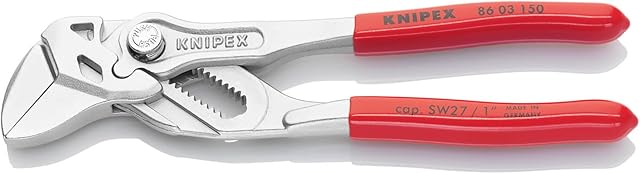

The table below shows the different versions of all Knipex pliers wrenches.
Short overview
Screws, grips, holds, bends and presses
For work on small screw joints
Replaces a whole set of spanners
Flexible gripping up to 23 mm or 7/8 inch
Protects sensitive surfaces
Direct working on chrome, brass etc.
Fast adjustment on the component at the touch of a button
No inadvertent adjustment
Time-saving according to the ratchet principle.
10-fold reinforcement of manual force
Mobile mini bench vice
Reliable and durable
High performance chrome vanadium steel
Oil hardened
Made in Germany
Versatile
Suitable for confined spaces and small components, such as compression fittings in industry.
Firm hold
Can be used as a mini bench vice: small components can be held securely using the mini pliers wrench.
Small helper
The mini pliers wrench ensures a firm grip with counter screw joints.
Small and fine
With the mini pliers wrench, you are ideally equipped for work involving precision engineering.
Multifunctional working
Whether bending, pressing or straightening work: the mini pliers wrench grips reliably.
Fast adjustment at the touch of a button
Replaces a whole set of spanners: can be adjusted at the touch of a button directly on the component (up to 23 mm).
Smooth gripping jaw
The Knipex pliers wrench is characterised by zero backlash component contact, thereby permitting gentle work on sensitive surfaces.
By way of comparison: conventional spanner
With a conventional spanner, the pressing on edges can damage the edges of screws.
EAN 4003773-
077497
069676
069928
035466
047162
033837
Length (mm)
125
150
150
180
180
250
Capacity (mm/inch)
23 / 7/8
27 / 1
27 / 1
35 / 1 3/8
35 / 1 3/8
46 / 1 3/4
Handles
plastic coated
plastic coated
with multi-component grips
plastic coated
with multi-component grips
plastic coated
Adjustment positions
11
14
14
13
13
17
Weight (g)
105
175
193
254
277
536
Product information
- Brand:KNIPEX
- Material:Blend
- Item dimensions L x W x H:13 x 3.5 x 1.4 centimetres
- Colour:Grips Plastic Coated, Red
- Handle material:Plastic
- Weight:0.11 Kilograms
- Usage:Holding,Pressing,Gripping,Bending
- Manufacturer:Knipex
- Part Number:86 03 125
- Product Dimensions:13.02 x 3.49 x 1.43 cm; 105 Grams
- Batteries:1 Unknown batteries required.
- Item model number:86 03 125
- Size:125 mm
- Style:Chrome-plated
- Pattern:Standard packaging
- Item Package Quantity:1
- Number Of Pieces:1
- Number of handles:2
- Measurement System:Metric
- Included Components:KNIPEX 86 03 125 Mini pliers wrench pliers and a wrench in a single tool chrome plated plastic coated 125 mm
- Batteries included?:No
- Batteries Required?:No
- Item Weight:105 g
