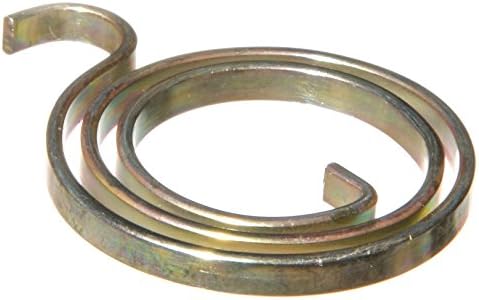

Northern DIY Door Handle Springs, 2.5 Turns, 3mm Thick, Zinc Plated (Pack of 10)

Northern DIY Door Handle Springs, 2.5 Turns, 3mm Thick, Zinc Plated (Pack of 10) by Amazon.co.uk

Price last update: 11/05/2025

View deal

• Top quality zinc plated springs giving the handle a firm, positive feel
• Can be used on both right handed and left handed handles
• Spring dimensions are shown in the additional photograph
• Tip: When fitting a new spring a little grease will give better wear and movement

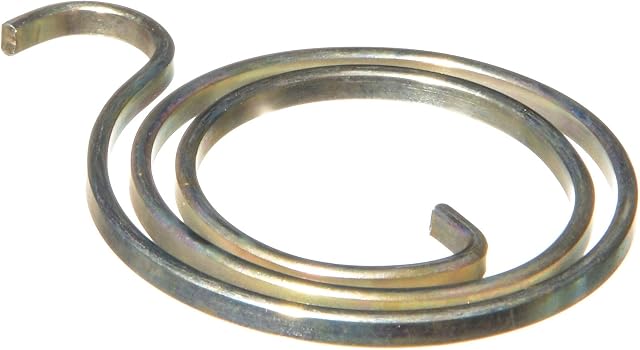

• 2mm thick and 2.5mm thick 2.5-turn coils also available - please read product description
• To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above

Description

Door Handle Springs (2.5-turn coil, 3.0mm thick) for internal door handles. Can be used on both right handed and left handed handles. Spring dimensions are shown in the additional photograph. Excellent quality springs giving the handle a firm, positive feel. The springs have a passivated zinc coating for corrosion resistance. When replacing a door handle spring the two most important things to check are a) the orientation of the external hook compared to the internal hook eg. is it a 2-turn coil or a 2.5-turn coil and b) the thickness of the spring (we define thickness as the height of the spring when laid flat). Most springs are retained with a circlip, which can be removed and replaced using external circlip pliers. External circlip pliers are available quite cheaply elsewhere on Amazon. This spring is 3.0mm thick. Please note that if you fit a thinner spring than originally fitted the handle will have some excess play. If you fit a thicker spring than originally fitted it may be difficult to replace the circlip and the handle may have a tendency to stick. To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above. Tip: When fitting a new spring a little grease will give better wear and movement. Fitting instructions are available on the Northern DIY website.
