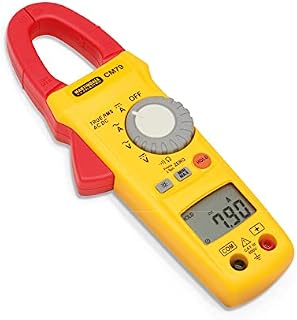

Martindale CM79 600 A AC/DC Auto Ranging True RMS Clamp Meter,Yellow by Amazon.co.uk
- • Auto ranging 60.00 A and 600.0 A
- • AC/DC voltage to 600 V and Resistance to 1000 Ω
- • Continuity test is less than 40 Ω
- • Auto power off and low battery indicator
- • Display backlight
Description
Measures AC/DC voltage, AC/DC current, resistance with TRMS capability
The CM79 is a pocket sized high performance TRMS AC/DC Clamp meter measuring AC and DC current up to 600A, AC/DC voltage and resistance with continuity test. The compact rugged design enables accurate and reliable DC current measurements down to 10mA resolution in applications including PV installations, battery monitoring and electric vehicles.
The TRMS capability ensures accurate and reliable AC current and voltage measurement for distorted waveforms caused by today’s power electronics and non-linear loads found in modern lighting and power supplies.
Can be operated single handed
Features include an elliptical jaw to accommodate bus bars up to 35x15mm, thumbwheel for single handed operation, auto ranging for ease of use, auto power off and low battery indicator plus a high contrast backlit display. Useful functions include hold and min/max hold for monitoring maximum loads, start up and charging currents.
The CM79 is supplied with Martindale TL16 test leads, soft carry case, alkaline batteries and manual.
True RMS measurement
AC and DC current
Autoranging 60.00A & 600.0A
AC / DC voltage to 600V
Resistance to 1000Ω
Continuity test <40Ω
MIN / MAX readings
Auto power off and low battery indicator
True RMS measurement
Measures AC / DC current up to 600A
MIN / MAX readings
Autoranging 60.00A to 600.0A
AC Current
200.0A 2.0% \xb1 10 (50-60Hz)
200A-0A 2.0% \xb1 10 (50-60Hz)
40.00A 300.0A 1.8% \xb1 5 (50-500Hz)
40.00A 400.0A 1.9% \xb1 3
60.00A 600.0A 1.9% \xb1 5
60.00A 600.0A 1.9% \xb1 5
DC Current
200.0A 2% \xb1 5
200.0A 2% \xb1 5
-
-
-
60.00A 600.0A 2% \xb1 5
AC Volts
mV,V to 600V 1.2% \xb1 5
mV,V to 600V 1.2% \xb1 5
-
400.0V 600V 1.2% \xb1 3
mV,V to 600V 1.2% \xb1 5
600.0V 1.2% \xb1 5
DC Volts
mV,V to 600V 1.2% \xb1 5
mV,V to 600V 1.2% \xb1 5 0.5% \xb1 2
-
400.0V 600V 1% \xb1 3
mv, V to 600V 1% \xb1 3
600V 1% \xb1 5
Ohms
Ω, kΩ, MΩ 1% \xb1 5
Ω, kΩ, MΩ 1% \xb1 5
-
400 Ω 1% \xb1 2
Ω, kΩ, MΩ 1.2% \xb1 3
1000.0Ω 1% \xb1 2
Max Conductor Size
15mm ⌀
15mm ⌀
27mm ⌀
25mm ⌀ 35x15mm
25mm ⌀ 35x15mm
25mm ⌀ 45x15mm
True RMS
-
-
-
-
✓
✓
Backlight
✓
✓
-
-
✓
✓
Other
Frequency Hz, Autorange, Continuity, Diode Test, Non contact voltage, Torch, Hold, Auto power off
Frequency Hz, Autorange, Continuity, Diode Test, Non contact voltage, Torch, Hold, Auto power off, Capacitance, Duty cycle, Temperature
Autorange, Hold, Auto power off
Autorange, Hold, Auto power off
Frequency Hz and kHz, Autorange, Non contact voltage, Smart measurement, Capacitance, Diode Test, Hold, Auto power off
Min/Max, Autorange, Hold, Auto power off
Safety
CAT III 600V
CAT III 600V
CAT III 300V
CAT III 600V
CAT III 600V
CAT III 600V
Product information
- Brand:Martindale
- Power source:Battery Powered
- Style:Compact
- Colour:Yellow
- Weight:0.26 Kilograms
- Manufacturer:Martindale Electric Co Ltd
- Part number:CM79
- Item Weight:260 g
- Product Dimensions:20.9 x 7.4 x 3.6 cm; 260 Grams
- Item model number:CM79
- Power source type:Battery Powered
- Item Package Quantity:1
- Number Of Pieces:1
- Measurement System:Metric
- Included components:1 x Martindale 600 Amp AC/DC Auto ranging True RMS Clamp Meter with batteries and carry case
- Batteries included?:No
- Batteries Required?:Yes
