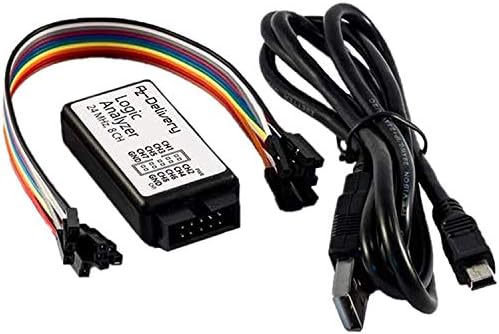

AZDelivery Logic Analyzer 24MHz 8CH 8 Channel Mini USB Cable UART IIC I2C SPI Debug compatible with Arduino Including E-Book!

AZDelivery Logic Analyzer 24MHz 8CH 8 Channel Mini USB Cable UART IIC I2C SPI Debug compatible with Arduino Including E-Book! by Amazon.co.uk

Price last update: 12/06/2025

View deal

• \u2705 AZ-Delivery Logic Analyzer 24MHz 8CH is fully compatible with the Logic analysis software and open source programs such as Sigrok (protocol analysis of RS232, SPI, I\xb2C, 1-Wire, etc.).
• \u2705 These handy Logic Analyzers have 9 parallel measurable signal inputs (0-5 V) at up to 24 million measuring steps per second.
• \u2705 Dimensions of the AZ-Delivery Logic Analyzer 24MHz 8CH are approximately (LxWxH): 55 mm x 28 mm x 14 mm.
• \u2705 AZ-Delivery Logic Analyzer 24MHz 8CH comes in package with 100 cm Mini USB connection cable and 10-pin ribbon cable (20cm).
• \u2705 This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

Description

The AZ Delivery Logic Analyzer is an 8-channel logic analyzer that can connect to a computer through a USB port and use the Saleae Logic Software for recording signals. The measuring range of the Logic Analyzer is 0-5 Volts, and the threshold values for digital low and digital high are 2V. This compact device has a stylish design with USB connection and is very portable. The device supports sample rates up to 24 MHz and has API for Custom Protocol Decoder Plugin particularities.
The Edge and pulse width triggering measurements can be filtered and sorted, along with search results and book marks. The technical data state that thedimensions of theAZ-Delivery Logic Analyzer are approximately (LxWxH): 55 x 28 x 14mm, while its compatible devices are personal computers and measures supportable sample rates up to 24 Msps. Supported protocols include SPI, I\xb2C, UART, SMBus, I2S,Can, parallel, custom, Search, Async, 1-Wite, and PS / 2 interfaces, while it also comes with a bundled serial cable to start quickly using the hardware. Additionally, you get a quickstart guide, e-book and DIY projects along with fast, safe, and reliable shipping that is both speed and security is important to us. Finally, this instrument can operate from a temperature range of 0\xb0C to 70\xb0C while it\'s input impedance is 1M\u03a9, and its support up to 24Msps can filter and bookmark its measuring data for an extended range and time period with multiple user friendly software to perform many challenging designs of logic circuit analysis experiments in one small product device with high ease-of-use technology for your ease-of-use comfort in realtime data with no complex and easy for DIY projects to the most advanced systems while performing fast in all operations without taking much time and having fun exploring with an incredible price for an innovative technology solution with the high standard of customer satisfaction!
Note that there are more details on this website about the AZDelivery Logistics Analyzer and how it can benefit any project and how easy to use is a must for professionals as well. It has been tested and is in stock ready to ship to any destination within a short amount of time to match any project need at any point and any project can get the support needed to reach its goals!
