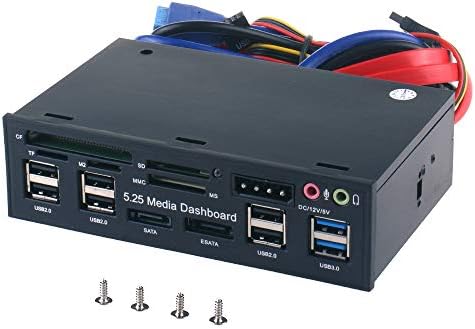

Tccmebius TCC-QL5E 5.25 Inch PC Multifunction Dashboard Media Front Panel, With SATA e-SATA Dual USB 3.0 6 port USB 2.0 Audio Ports and Five-in-one Card Reader (SD/MMC/CF/MS/TF / M2) by Amazon.co.uk
- • The TCC-QL5E front panel media dashboard is made of ABS material and etched on surface. It is stable with high speed and safety. It is durable as well as beautiful. It is anti-rust and hard to be scrapped.
- • It has build-in USB 3.0 Port, USB 2.0 port, e-SATA, SATA port, 4 pin IDE Power port or DC 12V, Audio, Multi Card Reader, which can command your needs; Power 12V/5V output. Note: 4pin power connector is to pay attention to the direction of connection, otherwise it will cause a short circuit, the product map has the correct link method.
- • 2 USB 3.0 Hub, transfer speed up to 5.0Gbps; 6 USB 2.0 Hub, transfer speed up to 480Mbps; e-SATA port, the transfer speed up to 3.0Gbps; SATA Port, the transfer speed up to 1.5Gbps.
- • Five-in-one Card Reader: Support SD / MMC / CF / MS / TF / M2, At the same time Card reader can only read one memory card.
- • WARRANTY: We promise worry-free lifetime technical support by Tccmebius. In the use of products during any product issues, please e-mail to us, we will do our best to solve for you, thank you for your understanding and support.
Compare Tccmebius TCC-QL5E 5.25 Inch PC Multifunction Dashboard Media Front Panel, With SATA e-SATA Dual USB 3.0 6 port USB 2.0 Audio Ports and Five-in-one Card Reader (SD/MMC/CF/MS/TF / M2) with other products:
Description
Operating System: Window98/Me/2000/XP/Vista/win7/ win8, Mac9.X/10.X/Linux.
Function:
2 USB 3.0 Hub(Host), transfer speed up to 5.0Gbps,downward is compatible with USB2.0 and USB1.1.
6 USB 2.0 Hub, transfer speed up to 480Mbps.
e-SATA port, the transfer speed up to 3.0Gbps.
SATA Port, the transfer speed up to 1.5Gbps.
Audio ports: front speakers and microphone. It solves the inconvenience of the plug behind your chassis.
Note: After the product is normally connected to the computer motherboard, only the audio port on the panel can work normally. If there are other audio ports on the computer, they will stop working.
All-in-one Card Reader: Support SD / MMC / CF / MS / TF / M2, At the same time Card reader can only read one memory card.
Supply Port：4Pin Power Interface, 12V/5V output.
NOTE:
1. When the computer can not shut down, unplug the 4-pin power cord connected to the computer, can be resolved. Because some computer motherboards in the shutdown will also appear after the return of the phenomenon, leading to not immediately shut down.
2. 4pin power connector is to pay attention to the direction of connection, otherwise it will cause a short circuit, the product map has the correct link method.
| | | | | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Installation Guide （First check whether the product is in good condition and whether the accessories are complete.） | Step1: Insert product console into your 5.25 bay. | Step2: Secure product console onto your 5.25 bay. | Step3 : Connect the 4Pin power connect to your 4-Pin power supply connector.
|
