Cable Matters Dual Monitor USB C Hub (USB C Dock) with 2X 4K DP, 2X USB 2.0,480Mbps Ethernet, and 100W Charging for Windows - Thunderbolt 3 Port Compatible by Amazon.co.uk
- • USB-C DOCK adds Ethernet, 2x USB 2.0, 2x Display Port, and 100W of charging power over a single USB-C connection; Connect to a Windows computer with a USB Type-C or Thunderbolt 3 port with this USBC Hub; USB Type C Hub requires DP Alternate Mode support to view video over USB-C with this USB C Docking Station.
- • BUS-POWERED USB C to Dual DisplayPort adapter supports dual monitor with Display Port at 3840x2160@30Hz; Dual monitor USB C adapter also supports lower resolution including 1440p and 1080p at 60Hz offered by the DisplayPort MST technology. Thunderbolt 3 compatible for use as a Thunderbolt 3 hub
- • POWERFUL USB C MULTIPORT ADAPTER provides USB C power delivery to power and charge a laptop up to 100 watts while in use; USB C DisplayPort Hub supports Power Delivery 3.0, the latest power specification; Maximize the utility of a single Thunderbolt 3 port to connect multiple devices while charging your computer with this dual monitor USB Type C adapter
- • 5 IN 1 FUNCTION USB-C Hub with DisplayPort and a removable case provides all the functions to work on the road when traveling; Connect a wireless mouse or keyboard with this USB C laptop dock; USBC Dock supports driver-free connection to an Ethernet network; Transfer files to a flash drive and expand your workspace to dual 4K UHD displays with this Thunderbolt 3 dock; Mini Dock Station weighs less than 5 ounces with a 6-inch cable tail that tucks into the case for transport
- • THUNDERBOLT 3 & USB-C COMPATIBLE dual monitor docking station with Surface Book 2, Dell XPS 12/13/15, Latitude 5000/7000, Precision 3000/5000/7000, Alienware 13/15/17, HP Elite X2, Z1 Workstation, Spectre, x360, EliteBook, ZBook 17/15/Studio, Envy 27, Lenovo IdeaPad Y900, Miix 720, ThinkPad P 50/70, T 470/470S/570, X270, X1 Carbon, X1 Yoga, Yoga 370/900/910, Gigabyte Aorus X5 15, X7, Razer Blade/Stealth/Pro, ASUS ROG GL/G5/G7/GX/Strix, ZenBook Pro
Compare Cable Matters Dual Monitor USB C Hub (USB C Dock) with 2X 4K DP, 2X USB 2.0,480Mbps Ethernet, and 100W Charging for Windows - Thunderbolt 3 Port Compatible with other products:
Description
The Cable Matters USB-C Multiport Adapter provides all the necessary ports to connect a thin Windows laptop with a USB-C or Thunderbolt 3 port. It provides instant connectivity to two DisplayPort monitors, an Ethernet network, two USB 2.0 devices, and 100W charging power via a single USB-C cable. Plug & Play with no external drivers required.
Important Notes
Dual monitor compatibility (DisplayPort MST) must be supported by the host computer (Windows).
Update Thunderbolt 3 firmware and drivers from your Laptop to ensure that all the ports function properly.
DisplayPort Alternate Mode support is required to view video over USB-C.
An active DisplayPort to HDMI / DVI adapter is required to convert from DP to HDMI / DVI. Passive adapters or cables are not compatible.
Dual Video Resolution Configurations
1920x1080@60Hz = 2 displays
2560x1440@60Hz = 2 displays
3840x2160@30Hz = 2 displays
3840x2160@60Hz = 1 display
6-Port Multiport Travel Dock
1) 2x DisplayPort Ports.
2) 100W Power Delivery.
3) 480Mbps Ethernet Networking.
4) 2x USB 2.0 Ports.
Dual DP Video Configurations
1920x1080@60Hz = 2 displays.
2560x1440@60Hz = 2 displays.
3840x2160@30Hz = 2 displays.
3840x2160@60Hz = 1 display.
USB Convenience
Add a wireless mouse/keyboard dongle.
Transfer files from a flash drive.
Connect a smartphone to sync files.
Thunderbolt 3 or USB-C
Compatible with Thunderbolt 3 computers.
Supports Windows 10 and Linux.
100W Power Delivery over USB-C
Optional bus-power.
Power and charge a laptop up to 100 watts.
USB-C charger must support power delivery.
Use the original USB-C charger and cable.
480Mbps Ethernet Networking
Instantly add Ethernet to a thin computer.
Supports 480Mbps Ethernet.
Faster and more secure than Wi-Fi.
LED status indicators verify the connection.

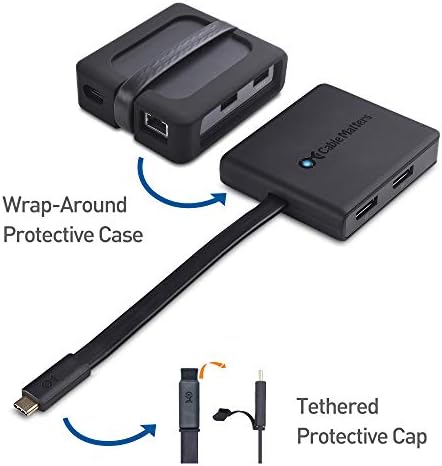

Wrap-Around Protective Case
Tuck the cable into the case for transport.
Removable case protects the Dock.
Tangle-Free Cord
Rubberized 15 cm TPE cable handles easily.
Dock Info: 8.6 x 7.4 x 2.8 cm / 130 g
Tethered Protective Cap
Protects the USB-C connector.
Prevents cable damage when traveling.
Thunderbolt 3 Port Compatible
✓
✓
✓
✓
✓
✓
Video Ports
3x DisplayPort
DisplayPort
Choice of DP/HDMI/VGA
2x DisplayPort
HDMI
2x HDMI
Video Resolution
Up to Triple 4K @ 30Hz
8K@60Hz
4K@60Hz (HDMI/DP), 1080p@60Hz (VGA)
4K@60Hz (Single Video) 4K@30Hz (Dual Video)
4K@60Hz
Up to Dual 4K@30Hz
USB Ports
2x USB-A, 2x USB-C
2x USB
1x USB
2x USB
n/a
5x USB, 1x USB-C (Up to 10Gbps)
Ethernet Networking
Gigabit Ethernet (1000Mbps)
480Mbps Ethernet
Fast Ethernet (100Mbps)
480Mbps Ethernet
n/a
Up to Gigabit Ethernet (1000Mbps)
Computer Systems
Windows
All OS
All OS
Windows
All OS
Windows
Model No
201331
201046
201031
201055
201062
201053
Product information
- Brand:Cable Matters
- Hardware interface:Ethernet, USB 2.0
- Compatible devices:USB Flash Drives, Mouse, Keyboards, Monitors, Laptops
- Data transfer rate:480 Megabits Per Second
- Number of ports:3
- Package Dimensions:10.2 x 8.8 x 4.6 cm; 180 Grams
- Item model number:201055-BLK-E
- Manufacturer:Cable Matters
- Operating System:Windows
- Are Batteries Included:No
- Item Weight:180 g
