  • AZDelivery 3 x RFID Kit - MFRC522 Compitabile with RC522 RF IC Card Reader Sensor Module, RFID Chip Key Ring and S50 Card 13.56MHz, Compatible with Arduino and Raspberry Pi including E-Book!

AZDelivery 3 x RFID Kit - MFRC522 Compitabile with RC522 RF IC Card Reader Sensor Module, RFID Chip Key Ring and S50 Card 13.56MHz, Compatible with Arduino and Raspberry Pi including E-Book! by Amazon.co.uk

Price last update: 13/06/2025
View deal
  • • ✅ Get now three RFID Kits at a special price with quantity discount!
  • • ✅ SCOPE OF DELIVERY - RFID-Compatibile with RC522 module, S50 card, S50 key fob, pin strips. FAST ENTRY - through already available libraries and SPI interface.
  • • ✅ APPLICATIONS - e.g. for the development of access controls, electronic door locks or terminals for time recording.
  • • ✅ SUPPORTED FORMATS - S50, S70 Ultralight, Pro
  • • ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

    Description

    With this RFID Kit from AZDelivery
    compatible with Arduino and Raspberry Pi you have everything you need to get started!
    Product details:

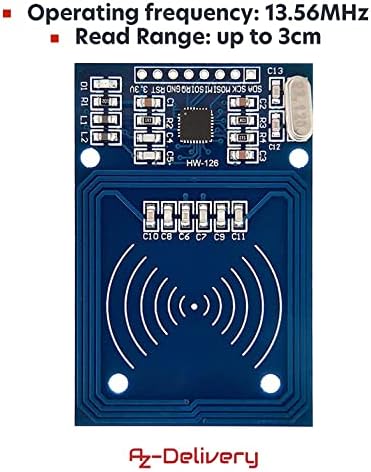

    RFID kit RC522 with MIFARE transponder and RFID card including E-Book for download, which makes getting started very easy, especially for beginners. The RFID RC522 module is based on the Philips MF522-AN board and comes together with a S50 card (13.56MHz), a S50 transponder / key fob and two matching pin headers.




    Details

    Compatible with Arduino, Raspberry Pi and microcontrollers due to ready-made open source libraries.

    Easy wiring of the chip via SPI interface!

    Great popularity in the community





    Special features

    Thanks to the contactless read and write card chip
    and the unique combination of functions and applications in the new technologies: Automation and Artificial Intelligence

    No batteries required:
    activated by the reader's power source.

    This means that tags can be very small, so small that they can be embedded in miniature devices.













    Technical specifications

    Chip
    		MFRC522
    Dimensions
    		40 x 60mm
    Operating frequency
    		13,56MHz
    Read and write distance
    		<10 cm
    Communication
    		SPI interface

    Maximum data transfer rate
    		10Mbit/s
    Operating current
    		13-26mA / 3.3V
    Quiescent current
    		10-13mA / DC 3,3V
    Operating temperature range
    		-20-80 degrees Celsius
    Operating temperature range
    		-40-85 degrees Celsius




    Further product details








    Possible applications
    The robust technology and unique functionality of the RFID kit offers unlimited applications in projects, smart homes, office automation, etc.

    		Contactless
    In contrast to barcodes, RFID does not require a direct line of sight between the reader and the tag, so the technology can be used effectively in harsh environments.

    		Software & Databases
    It is an efficient way to identify individual items electronically. The ID can be linked to software and databases.

    		Quick-Start-Guide
    When you purchase one of our high-quality products, you will also receive an included E-Book for a quick introduction to the world of microelectronics.











    Operating frequency
    		13,56MHz
    		13,56MHz
    		13,56MHz
    Dimensions
    		40 x 60mm
    		85.5mm × 54mm × 0.84mm
    		30mm
    Read and write distance
    		<10 cm
    		<10 cm
    		3 - 10 cm
    Communication speed
    		106 Kbps
    		106 Kbps
    		106 Kbps
    Operating temperature range
    		-20-80 °C
    		-20-50 °C
    		-40-85 °C
    Standard
    		ISO/IEC 14443A
    		ISO/IEC 14443A
    		ISO/IEC 14443A





    About AZDelivery






    Exciting DIY projects
    In our blogs you will find many DIY projects on the subjects of programming and microelectronics. Every week we present new DIY ideas and product applications.

    		Support from our experts
    You can find all the technical details about the products in our E-Books and blog posts. If you have any further questions, our service team is at your disposal.

    		Efficient and safe delivery
    Since customer trust is our top priority, we always offer efficient, safe and reliable delivery with the highest quality standards.

    Product information

      • Hard disk interface:USB 1.1
      • Brand:AZDelivery
      • Compatible devices:Laptop
      • Colour:Blue
      • Specific uses for product:Business
      • Number of items:3
      • Manufacturer:AZDelivery
      • Part number:3x RFID Kit RC522
      • Item Weight:90 g
      • Package Dimensions:14 x 9.9 x 2.4 cm; 90 Grams
      • Item model number:AZDeliveryRFIDKit
      • Size:3x RFID Kit
      • Item Package Quantity:1
      • Specific uses:Business
      • Batteries included?:No
      • Batteries Required?:No
