Digital Discovery: Portable USB Logic Analyzer and Digital Pattern Generator by Amazon.co.uk
- • 32-channel digital logic analyser (1.2 - 3.3 V CMOS), 8 channels with 800 MS/s, 16 channels with 400 MS/s, 32 channels with 200 MS/s
- • Protocol Analyzer (SPI, I2C, UART, CAN, AVR)
- • 16-channel bit pattern generator (1.2 - 3.3 V CMOS), 100 MS/s
- • 16-channel virtual digital I/O (button, switch, LEDs), ideal for testing logic applications
- • 4-channel programmable power supply (1.2 - 3.3 V / 100 mA)
- • All inputs and outputs can be programmed: drive, slew, pull, frequency, logic level 1.2V or 3.3V
Description
Product Product Type: Test & Measurement > Electrical Testing > Oscilloscopes & Accessories > Oscilloscopes
Product Categories: Test & Measurement > Electrical Testing > Oscilloscopes & Accessories > Oscilloscopes

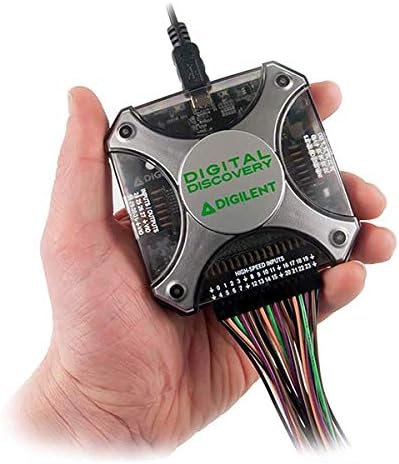

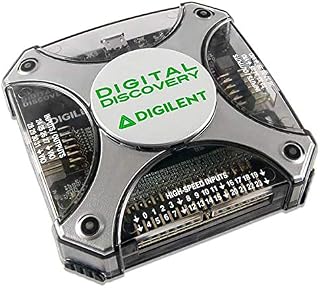

The Digilent Digital Discovery is a powerful digital instrument that combines a logic analyzer and pattern generator. This device is designed for debugging of embedded projects, visualizing and simulating digital signals, and debugging.
The Digital Discovery can be easily connected via USB to your Mac, Linux or Windows computer. It comes with a free software named "WaveForms 2015", which provides additional functions.
The device has a bandwidth of 100 MHz with 24 input pins with DIN 0-23 connectors, accessible through a 2 x 16 connector, providing DIN pins for signal integrity and high-speed inputs.
The Digital Discovery has automatic or manual increase rate adjustments for outputs and supplies a user-friendly power supply, 1.2V-3.3V (max) for the virtual instruments and DIO channels with eight input channels with high-speed adapter and fly wires for input sampling rates of up to 800 MS/s with eight channels and up to 200 MS/s with 32 channels.
The Virtual instruments include protocol controller with DIO channels and logical levels, pull resistors and output strengths for the user to perform custom boolean functions and state machines with the
Product information
- Manufacturer:Digilent
- Part number:410-338
- Item Weight:181 g
- Product Dimensions:7.62 x 15.24 x 20.32 cm; 181.43 Grams
- Item model number:410-338
- Item Package Quantity:1
- Included components:Digital Discovery Logic Analyser and Pattern Generator; One USB Cable; 2x6 Flywires: Signal Cable Assembly; 2x16 Flywires: Signal Cable Assembly
- Batteries included?:No
- Batteries Required?:No
