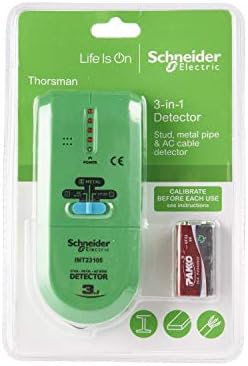

Schneider Electric Thorsman - 3-in-1 Multi Purpose Digital Detector, Stud/Metal/Live AC Wire Detecting, with LED Indicator, IMT23105, Green/Grey by Amazon.co.uk
- • Detection depth
- • Stud mode: wood stud of 30×30 mm at depth of 18 mm
- • Metal mode: iron pipe of Ø 25 mm at depth of 30 mm
- • AC mode: 50 mm for 90...250 V at 50...60 Hz
- • Power: 9 V battery (6F22), Weight: 165 g (with battery)
- • Locates stud centre, wood and metal studs
- • AC scanning to trace hot wire
- • Metal scanning for locating nail, pipe, rebar and other hidden metallic objects
- • Signal indication : LED indicator
- • Always calibrate before each use
Description
A complete suite of test meters that offer quality, ergonomic and robust products: safe and easy to operate measuring and testing tools, supplying clear and accurate readings of current, resistance, temperature, and moisture.
3 in 1 LED Detector
This unit is an advanced detector. It can be used in construction, fitment, carpentry, etc.
Detection depth
Stud mode: wood stud of 30\xd730 mm at depth of ≤ 18 mm
Metal mode: iron pipe of \xd8 25 mm at depth of ≤ 30 mm
AC mode: 50 mm for 90...250 V at 50...60 Hz
Power: 9 V battery (6F22)
Weight: 165 g (with battery)
Always calibrate before each use.
Find the stud center, find wood and metal studs, AC scanning to trace hot wire
Metal scanning for finding nail, pipe, rebar, and other hidden metallic object
Signal indication: when detects an edge of object, the top signal LED lights as an indicator
Spotlight & groove: when detects an object, the spotlight appears and mark in the groove position
ERGONOMIC
Easy to use and read with digital , sound or light displays.
Easy to carry thanks to compact design. Hands free options.
SAFETY
Sound or light warnings where applicable, comply to IEC 61010, Cat III or Cat IV overload protection accordingly.
ROBUST
Made to resist tough environment - robust plastic cases and rubber holsters.
SMART
Easy to use, packaging + marking on product to understand all the features. Full instruction manuals included.
Description
Hand-held digital infrared thermometer for surface temperature measurement.
Traditional analogue meter using a needle gauge to measure Voltage, Current and Resistance
Digital multimeter equipped with a backlit screen and a data hold function designed to measure voltage, current, resistance
This socket tester can be used to determine whether socket wiring is correct or incorrect
This unit is an advanced detector. It can detect and locate metal, AC voltage and stud. It can be used in construction, fitment, etc.

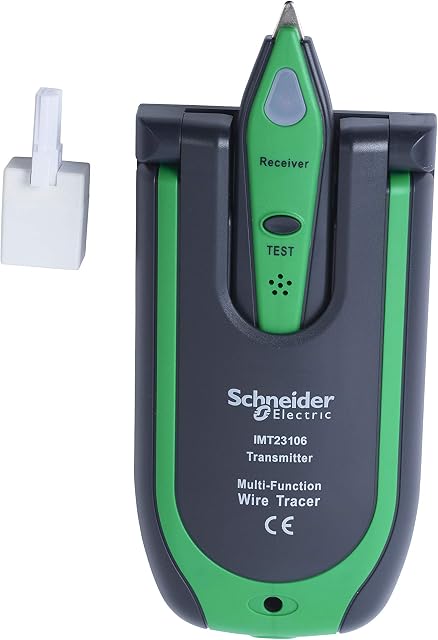

Designed to generate a distinct tone in any unenergized wire or cable. This tone can be picked up with the tracker receiver. An LED acts as a visual indicator to show that the unit is on
Electrical insulation
-
Cat III, 300 V
IEC 61010 Cat III, 300 V
Cat III, 300 V
-
-
AC Voltage
-
12/60/300 V
0.2/2/20/200/300 V
-
50 mm for 90...250 V at 50...60 Hz
DC automotive wires
Measurement range
-20...520\xb0C (-4...968\xb0F)
-
Fused by 250 mA and 10 A fast fuse
50...60 Hz
-
Must be used when electrical circuits are switched off
Power
-
-
9 V battery
-
9 V battery (6F22)
1.5 V (LR41/SR41)\xd74 (R)
Weight
150 g (without battery)
275 g (without battery)
290 g (with battery)
approx. 70 g
213 g (with battery)
220 g (with battery)
