Vonets Mini Dual Band 2.4GHz/5GHz AC1200 WiFi Bridge/WiFi to Ethernet Convert/Hotspot Signal Range Cover with 1 RJ45 Male (10/100Mbps) USB/DC Powered for DVR/IP Camera VAP11AC by Amazon.co.uk
Compare Vonets Mini Dual Band 2.4GHz/5GHz AC1200 WiFi Bridge/WiFi to Ethernet Convert/Hotspot Signal Range Cover with 1 RJ45 Male (10/100Mbps) USB/DC Powered for DVR/IP Camera VAP11AC with other products:
Description
1. The product has temperature compensation, it is normal to generate heat, please do not worry too much about the shell temperature. After a lot of tests, the product can work normally. and it can be used normally when the power supply is stable
(Typical 5V/2A, ripple less than 100mV).
2. Built-in heat sink with convection cooling holes on both sides of the housing for more efficient heat dissipation;
3. Two power supply methods: USB or DC power cable optional powered mode(two types of power supply can’t be used at the same time and cannot plug the USB power cable into the PC or laptop); it is convenient to share power supply with other devices;
4. Antenna: Built-in Intelligent Omnidirectional antenna
WiFi Bridge Mode
Bridge mode can expand the existing network, which is convenient for network expansion and can convert WiFi to Wired or Wired to WiFi RJ45 ethernet network. In bridge mode, you can easily realize WiFi bridging by directly connecting to the WiFi of the source router.

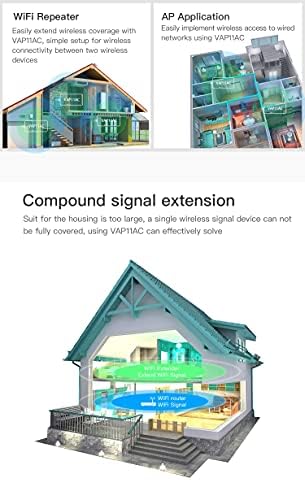

WiFi Repeater Mode
Repeater mode can expand the existing network, at the edge of the original WiFi hotspot signal coverage, it can receive the weak WiFi signal and then boost it to the normal safe strength. After optimization and error correction processing, after optimization and error correction processing, the signal coverage distance is doubled.
Mini dual band bridge and Wide Compatibility
1. Built-in heat sink with convection cooling holes on both sides of the housing for more efficient heat dissipation;
please do not worry too much about the shell temperature. After a lot of tests, the product can work normally.
2. With fixing kit, hook designed, more convenient for many industrial engineering applications
Package:
VAP11AC*1
User manual*1
Retail box*1
VONETS VAP11AC has a wide range of applications. It can be used for wired or wireless devices that need to be connected to the Internet.
Function Features
Industrial Dual-band 2.4G+5G AC1200 WiFi Bridge/Repeater can realize WiFi to Ethernet or Ethernet to WiFi function.
Wireless bandwidth : 2.4G: 300Mbps, 5G: 900Mbps (theoretical value).
WiFi transmission protocol: 802.11AC/A/N/B/G;
WiFi hotspot memory up to 100 hotspots;
Support for connecting more than 20 WiFi terminals at the same time;
Supports IP layer and MAC layer transparent transmission.
Hardware Features
Support wide voltage DC5V-15V(Typical 5V/2A, ripple less than 100mV);
A USB/DC power cable; A set of 10/100m adaptive Ethernet cable;
LED Status Indication:
Ethernet Port Status Light (Yellow);
2.4G WiFi Connection Status Light (Blue);
5G WiFi Connection Status Light (Green);
Reset button: Long press 5 seconds then release, the device will automatically restore the factory (during operation, the product can not be powered down, otherwise it may cause damage to the product.);
Working environment temperature: -20 \xb0 C to 50 \xb0 C;
Connect your wired or WiFi device to WiFi or wired
By using this Dual Band WiFi Bridge VAP11AC, your Ethernet-enabled or WiFi Devices can access the Internet via WiFi or Wired Connection; this is a good solution for those devices which do not come with built-in wifi card and is fully compatible with most devices that have an Ethernet port.

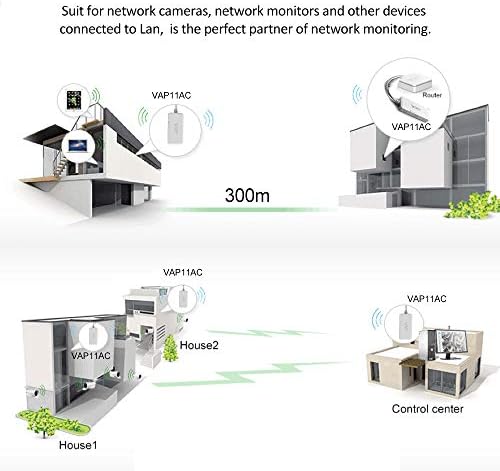

Suitable for many WiFi or Wired (Ethernet) network devices and applications
Good Partner for Network Printer, Monitor, DVR, IP camera, Medical devices, IoT devices, Video transmission, POS Cash Register, PS3, Robots, Doll Machine, Electronic Scales, and more network devices and applications.
Tips:
1. After configuration, if this device doesn't work with your devices or your application is AC managed AP, IP camera, surveillance system or other devices, please change the setting of "Transmission mode" to "MAC layer transparent";
2. If you want to use Huawei or iPhone as the source hotspot for WiFi bridge, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password during configuration.
WiFi Router Function
None
None
None
Support
Support
Support
WiFi bridge & Repeater Function
Support
Support
Support
Support
Support
Support
Support frequency band
2.4GHz
2.4GHz
2.4GHz+5GHz
2.4GHz
5GHz
2.4GHz+5GHz
WiFi Transmission speed
300Mbps
300Mbps
300Mbps+900Mbps
300Mbps
900Mbps
300Mbps+900Mbps
WiFi mode (Protocol)
802.11b/g/n
802.11b/g/n
802.11a/ac/b/g/n
802.11b/g/n
802.11a/ac/n
802.11a/ac/b/g/n
Automatic reconnection
✓
✓
✓
✓
✓
✓
Hotspot memory
✓
✓
✓
✓
✓
✓
Supply voltage and current
(DC5V—15V) Typical 5V/1A
(DC5V—15V) Typical 5V/2A
(DC5V—15V) Typical 5V/2A
(DC5V—24V) Typical 5V/2A
(DC5V—24V) Typical 5V/2A
(DC5V—15V) Typical 5V/2A
Power supply interface mode
DC2.5 power hole,DC2.0 power plug,USB connector
DC2.5 power hole,DC2.0 power plug,USB connector
DC power jack,USB connector
DC power jack,USB connector,Industrial DC adapter
DC power jack,USB connector,Industrial DC adapter
DC power jack,USB connector,Industrial DC adapter
Product information
- Brand:Vonets
- Wireless Type:802.11a/b/g/n/ac, 5 GHz Radio Frequency, 2.4 GHz Radio Frequency
- Data transfer rate:1200 Megabits Per Second
- Special feature:WiFi to Ethernet, Wired to WiFi, Ethernet to WiFi convert, WiFi to Wired
- Colour:White
- Product Dimensions:9.4 x 4.5 x 1.5 cm; 90 Grams
- Item model number:VAP11AC
- Manufacturer:Shenzhen Houtian Network Communication Technology Co.,TLD
- Series:WiFi Bridge VAP11AC
- Number of Ethernet Ports:1
- Hardware Platform:PC
- Operating System:Linux, Windows, iOS, Android
- Are Batteries Included:No
- Item Weight:90 g
