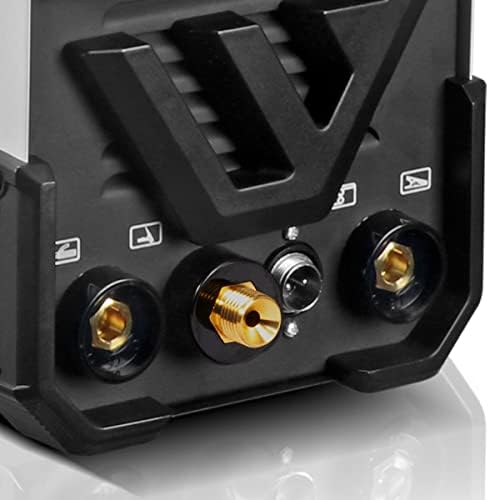

STAHLWERK DC TIG 200 ST IGBT - Combined TIG + MMA/ARC inverter welder with 200 Ampere,7 years warranty, Welding of steel, stainless steel and more (not for ALU welding) by Amazon.co.uk
- • DC TIG welding machine with ARC/MMA Stick function. Modern IGBT inverter technology - powerful 200 A with a high duty cycle. Remarque: ne convient pas pour le soudage de l'aluminium!
- • Professional WP-26F welding torch with flexible head, 2 Takt/4 Takt, gas post flow, high performance cooling, overheat control, hotstart, anti-stick, HF ignition. Note: Not suitable for welding aluminium!
- • For welding of non - alloyed and low - alloy steels, stainless steels, copper, brass, etc
- • Buy directly from the manufacturer - 7-years warranty according to \xa7 13 of terms and conditions (for terms and conditions please click on the seller\xb4s name) on welders, plasma cutter, air compressors, filter for welding helmets & battery chargers, telephone support, technical support and service even outside the warranty period
- • Note for our UK customers: Please note that import duties apply to goods valued at \xa3 135 or more.
Description
– Direct current (DC). Welding of almost all materials such as steel, stainless steel, copper, brass and many more.
2 in 1 combined device
– TIG and MMA welding up to 200A.
2T/4T (TIG) –
determines the control of the operating mode and provides extended control over the current flow. In 2T mode, high-frequency ignition (HF) remains active until the button on the torch is released. In 4T mode the arc is ignited after a single press and release of the button. After pressing and releasing again, the ignition is stopped.
Gas post
flow (TIG) –
protects the tungsten electrode against excessive wear and protects the weld from oxidation. The parameters can be set individually and separately. They indicate how long after ignition gas should flow.
IGBT Technology –
latest transistor technology enables highest power and a duty cycle of 60% at full power. No transformer, no MOSFET, modern IGBT.
Lightweight & compact design –
With a weight of only 7,6 kg
and dimensions of 390 x 170 x 275 mm
, the device is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No heavy carrying!
High frequency ignition–
allows non-contact ignition and ensures a much better welding result.
Hotstart –
Automatic voltage increase upon the start for better ignition results.
Device Funktions & Components
Anti-stick
- Automatic shutdown of the welding current in case of sticking of the electrode which allows an easy removal. It also prevents annealing of the electrode.
Highest efficiency & performance
– Single phase current (230 V) supplies the device and allows an output power of real 200 amperes.
Smart cooling & overheating protection –
modern technology, built-in overheat protection and high-performance cooling allow you to get maximum performance.
TIG (Tungsten-Inert-Gas) –
Inert gas welding with inert / inactive gases such as Argon 4.6 (99.996%). An arc is created in an argon bell between the tungsten electrode and the workpiece. This melts the material and any filler material that is supplied. A weld seam is created.
MMA / Stick electrode welding
–
an universal welding process. An arc causes the electrode to melt, forming the weld. No protective gas is needed and can therefore be used flexibly anywhere.
Technical Data
Output current: 30-200 A
Duty Cycle: 60 % at 200 A / 100 % at 155 A
Power supply: 230 V AC (+-15%) / 1 ~ (single phase)
Frequency: 50/60 Hz
Maximal power input: 26,8 A
Actual power input: 20,8 A
Mains connection: SchuKo-Bauart CEE 7/7
Standards: IEC 60 974-1;CE
Further Technical Data
Protection type: IP21
Insulation class: F
Weight: 7,6 kg
Dimensions: L x W x H (mm) 390 x 170 x 275
Content of delivery
The STAHLWERK DC TIG 200 ST IGBT welding machine
TIG Torch Package "WP-26F" 4,5 meters* with flexible torch head and bend protection at the gas connection
TIG accessory set, 8-pieces*: - 3x gas nozzles in sizes: 5, 6, 7 - 1x collet size 1,6 - 1x collet body size 1,6 - 2x back caps (a long and a short each) - 1x universal tungsten electrode
Furher content:
Ground cable 5 meters
Electrode holder 5 meter
Chipping hammer
Wire brush
Gas hose with snap-on quick coupling 5 meters
UK 3-Pin sockets adapter (included to UK customers with UK shipping address)
WP-26F TIG hose package
High-quality professional WP-26F TIG hose package with flexible torch head and bend protection at the gas connection. Optimal ignition behavior up to 200 A. Thicker hose and ergonomic handle. A 8-part set of consumables for immediate start is included in delivery.
Robust electrode holder
Robust electrode holder with modern 9 mm connection and 25 mm\xb2 cable cross-section. Best conductivity through high quality copper cables. Different angles for stick electrodes possible.
Robust grounding clamp
Robust grounding clamp with modern 9 mm connection and 25 mm\xb2 cable cross-section. Best conductivity through high quality copper cables.
Field of view
92,5 mm x 42,5 mm
92,5 mm x 42,5 mm
98 mm \xd7 55 mm
100 mm \xd7 83 mm
100 mm \xd7 93 mm
100 mm \xd7 93 mm
Sensitivity adjustment
stepless
stepless
stepless
stepless
stepless
stepless
Number of sensors
2
2
4
4
4
4
Dimming levels
DIN9-DIN13
DIN9-DIN13
DIN5-DIN9 / DIN9-DIN13
DIN5-DIN9 / DIN9-DIN13
DIN5-DIN9 / DIN9-DIN13
DIN5-DIN9 / DIN9-DIN13
Working mode selectable
✓
✓
✓
✓
Optical class 1/1/1/1
✓
✓
✓
✓
Real colour
✓
✓
✓
✓
Product information
- Manufacturer:STAHLWERK
- Part number:1740-001
- Item Weight:7 kg
- Product Dimensions:46 x 27 x 33 cm; 7 Kilograms
- Item model number:1740
- Colour:White
- Voltage:230 Volts
