Geekworm Raspberry Pi 4 X735 V3.0 Expansion Board with PWM Cooling Fan & Safe Shutdown & DC 6V-30V Width Voltage Input for Raspberry Pi 4B/ 3B+/ 3B / 2B by Amazon.co.uk
Description
X735 is updated to V3.0

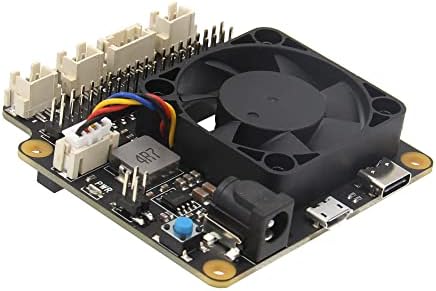

on April 25th, 2022. The X735 V3.0 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40-pin header. It provides intelligent and safe power management
, safe shutdown,
full poweroff through software
, DC 6V-30V Width Voltage Input
and a PWM fan
.
[Update History]
X735 V3.0
(this product), updated in April 25th, 2022:
Support width voltage DC 6V-30V input (only DC port), you still can use 5V PSU via USB-C or Micro USB socket.
Remove the latching switch connector(the latching switches are no longer supported.), and add a XH2.54 5V OUT connector;
Replace the L-SW jumper with FAN FS jumper to control the PWM fan; (Some new user may fail to install the script to make PWM fan work, or some 3rd party OS do not support install script, in this case pls remove the FAN FS jumper to make the PWM fan run at full speed)
X735 V2.5
(Discontinued), updated in March 15th, 2021:
The fan is changed to a silent PWM fan, supports ajusting and read the fan speed, script is need (python code is provided on X735 WiKi)
Considering that some customers use X735 together with other DAC shield, we adjusted the GPIO pins used.
X735 V2.1
(Discontinued), updated on November 8th, 2019:
Change jumper 'FAN_HS' to 'AUTO ON' function; as we found 'AUTO ON' function is more useful to user.
X735 V2.0
(Discontinued), updated on August 12th, 2019:
With the release of pi4, we add the USB C power port on X735 to compatible better with Raspberry Pi 4; (remain the other DC, MICRO USB and XH2.54 power port), and also compatible with Raspberry Pi 3B+ and previous versions)
X735 V1.0
(Discontinued), first released on April 13th 2019\uff1a
Cooling & Power Management Board specially designed for raspberry pi 3
[Features]

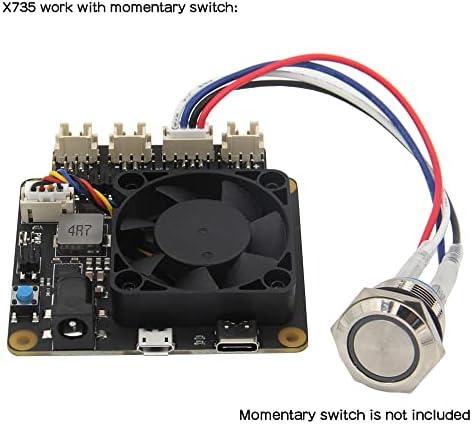

Intelligent and safe power management:
Press the power button to turn on
Press the button and hold for 1~2 seconds to reboot
Press the button and hold for 3~7 seconds for safe shutdown
Press the button and hold for >8 seconds to force shutdown
Supports safe shutdown and full power off through software (script is needed, pls refer to X735 V2.5 Software on wiki)
On-board LED shows the status of power on, reboot and shutdown
Powers the Raspberry Pi via the 40-pin header - no additional cabling required
PWM cooling fan(control by script)
:
Dedicated PWM cooling fan for Raspberry Pi
Air flow up to 6.01CFM and maximum speed of 5000 RPM
Real-Time fan speed reading
Programmable temperature and fan speed
Reserved 40-pin stackable Header for Add-On Boards:
Works with all current models of the Raspberry Pi
Reserved 40-pin stackable Header for Add-On Boards
[Power supply requirement]
X735 support 4 kinds of power supply:
DC5521 Port:
Power Input 6-30V
USB C Power Port:
Power Input 5Vdc +/-5%, ≥3A
Micro USB:
Compatible with your original mirco usb power adapter
XH2.54 2Pin Cable:
This is a flexible power supply
[Packing List]
1 x X735 V3.0 Power Management Board
4 x Spacer F/F M2.5 *12mm
4 x Spacer M/F M2.5 *12+6mm
8 x Screw M2.5 *6mm
2 x Jumper link Pitch 2.54mm
[X735 V2.5 Function Description]
Product information
- Brand:Geekworm
- Operating System:Raspberry Pi
- Screen size:2.5 Inches
- Series:Raspberry Pi 4
- Colour:Black
- CPU manufacturer:Intel
- Connectivity technology:USB
- Human interface input:Buttons
- Product Dimensions:6.8 x 6.8 x 2.5 cm; 50 Grams
- Item model number:TB-2019-05
- Manufacturer:Geekworm
- Color:Black
- Standing screen display size:2.5 Inches
- Processor Brand:Intel
- Are Batteries Included:No
- Item Weight:50 g
