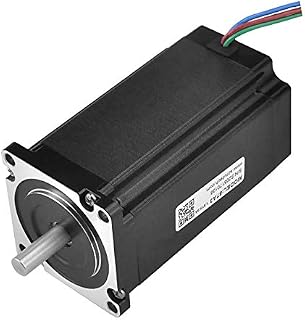

RTELLIGENT Nema 23 Stepper Motor 3.0Nm/425oz.in 4-lead 57x57x100mm 8mm Shaft High Torque Step Motor CNC Mill Lathe Router by Amazon.co.uk
- • Features: 2 phase, 1.8 degree step angle, 3.0Nm holding torque, 4.0A-5.0A Rated Current, 4-wire, 24-50VDC operating voltage(Recommend 48VDC)
- • Advantage: The stepping motor is featuring low vibration, low noise, low heating, high speed
- • Digital Motor: With the digital character, the step motor can control position and speed accurately
- • Default Connection: Black (A), Red (B), Green (C), Blue (D)
- • Application: The stepper motor is widely use for 3D printers, medical equipment, industrial equipment, laser CNC machine, automation devices
Description
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in textile, package, printing, carving, advertising, laser, electron and other Automatic industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs by the innovation of our R&D team.
We welcome new and old customers from all walks of life to consult us for future business relationships and mutual success!
Nema 23 Stepper Motor 4.0A 3.0Nm(450oz-in )
Our RTELLIGENT stepper motor is specially designed for accurate control of position and speed. The biggest characteristic of step motor is "digital" For each pulse signal from the controller, the stepper motor driven by its runs at a fixed angle ("One step" for short)
General specification
Step accuracy: \xb15%(synchronizing, no-load)
Temperature rise: 80℃Max
Ambient temperature: -10℃—+50℃
Insulation resistance: 100M\u03a9min.500VDC
Voltage resistance: 500VAC for one minute
Radial runout: 0.06Max.(450g-load)
Axial runout: 0.08Max.(450g-load)
Electronic Specification of Step Motor
Product Model
57A3
Step Angle
1.8\xb0\xb15% (full step, no-load)
Rated Current
4.0A
Holding Torque
3.0Nm (450oz-in)
Phase Resistance
0.9Ohm \xb1 10%
Phase Inductance
3.2mH \xb1 20%
Rotor Inertia
720g.cm\xb2
Shaft Diameter:
8mm
Motor Body Length
100mm
Connection
Red (A+) Blue (A-) Green (B+) Black (B-)
Size
Warning
Warning
: Make sure the motor is connected to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will destroy it.
Package Contents
:
1 x 57A3 digital stepper motor (open loop)
1 x user manual
Noted:
If you encounter technical problems about our product, please feel free to ask us (if we do not reply, it means that we have not received your information). Please send again or ask Amazon directly. Thanks for your support!
57A1S8D
Rated Current
2.8A
2.8A
4.0A
4.0A
3.5A
Holding Torque
0.9Nm /127.5oz-in
1.3Nm/184.12oz-in
2.2Nm/311.67oz-in
3.0Nm/425oz.in
2.0Nm/283.30oz-in
Shaft Diameter
6.35mm
6.35mm
8mm
8mm
8mm
Dimension
57x57x55mm
57x57x76mm
57x57x80mm
57x57x100mm
57x57x76mm
Common Faults and Troubleshooting
Product information
- Brand:RTELLIGENT
- Voltage:48 Volts
- Material:Alloy Steel
- Manufacturer:RTELLIGENT
- Part number:57 MOTOR
- Item Weight:1.56 kg
- Package Dimensions:16.1 x 12.5 x 9.9 cm; 1.56 Kilograms
- Manufacturer reference:57 MOTOR
- Size:3.0Nm
- Batteries included?:No
- Batteries Required?:No
