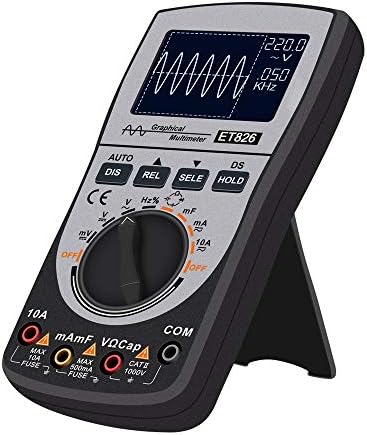

2-in-1 Intelligent Digital Oscilloscope Multimeter DC/AC Current Voltage Resistance Frequency Diode Tester 4000 Counts 200KHz Analog Bandwidth 200Ksps Maximum Real-Time by Amazon.co.uk
Currently Unavailable
Description
Analog bandwidth: ACV/DCV/ACA/DCA 20KHz
Maximum real-time sampling rate: 200ksps
Digital multimeter:
DC voltage:
Range: 400mV/4V/40V/400V/1000V
Resolution: 0.1mV/1mV/10mV/100mV/1V
Uncertainty:
400mV: \xb1 (0.75%rdg+10dgt)
4V/40V/400V/1000V: \xb1 (1.5%rdg+10dgt)/1000V
AC voltage:
Range: 400mV/4V/40V/400V/750V
Resolution: 0.1mV/1mV/10mV/100mV/1V
Uncertainty:
400mV: 50Hz~1KHz / \xb1 (2.0%rdg+10dgt) no more than 1KHz
4V/40V/400V: 50Hz~400Hz / \xb1 (1.0%rdg+10dgt) 400Hz~20KHz / \xb1 (5.0%rdg+10dgt)
750V: 50Hz~1KHz / \xb1 (1.5%rdg+10dgt) no more than 1KHz
DC current:
Range: 40mA/400mA, 4A/10A
Resolution:
40mA/400mA: 10\u03bcA/100\u03bcA
4A/10A: 1mA/10mA
Uncertainty: \xb1 (1.2%rdg+10dgt)
AC current:
Range: 40mA/400mA, 4A/10A
Uncertainty: \xb1 (1.5%rdg+10dgt) 50Hz~5KHz no more than 5KHz
Resistance:
Range: 400\u03a9/4K\u03a9/40K\u03a9/400K\u03a9/4M\u03a9/40M\u03a9
Resolution: 0.1\u03a9/1\u03a9/10\u03a9/100\u03a9/1K\u03a9/10K\u03a9
Uncertainty: \xb1 (1.0%rdg+5dgt) \xb1 (3.0%rdg+5dgt)/40M\u03a9
Capacitance:
Range: 51.2nF/512nF/5.12\u03bcF/51.2\u03bcF/100\u03bcF/10mF
Resolution:
51.2nF/512nF/5.12\u03bcF/51.2\u03bcF/100\u03bcF: 10pF/100pF/1nF/10nF/100nF
10mF: 1\u03bcF
Uncertainty:
51.2nF/512nF/5.12\u03bcF/51.2\u03bcF/100\u03bcF: \xb1 (3.0%rdg+10dgt)
10mF: \xb1 (5.0%rdg+15dgt)
Frequency:
Range: 5Hz~5MHz
Resolution: 1Hz
Uncertainty: \xb1 (1.0%rdg+5dgt), (signal amplitude not less than 2Vp-p, ACV, MAX 380V)
Diode test: open circuit voltage is about 1.5V, the maximum test current is about 1.5mA
Continuity test: reference resistance is about 50\u03a9
Fuse specification: 500mA/250V, 10A/250V
Specifications:
Material: ABS
Main color: grey
Display: LCD display, 128*64dot-matrix graphics, 4000 counts
LCD size: 60 * 40mm / 2.4 * 1.6in
Backlight: white
Power: 3 * 1.5V AA battery (not included)
Input resistance: 10M\u03a9
Auto sleep: yes (the meter automatically auto sleep in 15 minutes without any operation of button)
Power consumption: about 40mA
Storage capacity: DMM data: 100 groups, waveform record: 10 groups
Operation environment: 0℃~+40℃; <75%RH
Storage environment: -10℃~+60℃; <90%RH
Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
Item weight: 190g / 6.7ounce
What will you get after purchase?
Package list:
1 * Multimeter Oscilloscope
1 * Pair of Test Pens
1 * Protective Bag
1 * User Manual
Product information
- Brand:VISLONE
- Power source:Con Alimentación de Batería
- Style:Modern
- Colour:Black, Grey
- Weight:364 Grams
- Part number:Osciloscopio-3
- Item Weight:364 g
- Package Dimensions:19.2 x 14.3 x 4.6 cm; 364 Grams
- Manufacturer reference:Osciloscopio-3
- Power source type:Con Alimentación de Batería
- Item Package Quantity:1
- Batteries included?:No
- Batteries Required?:No
