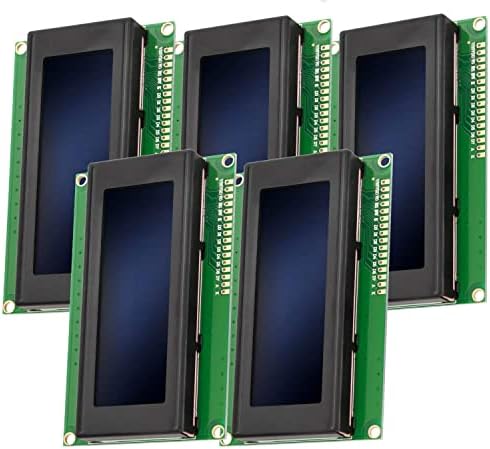

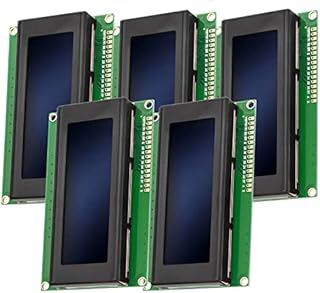

AZDelivery Compatible with HD44780 2004 4x20 Serial LCD White Character Blue Backlight Display Board 3.3V 5V Compatible with Arduino and Raspberry Pi Including E-book! (Pack of 5) by Amazon.co.uk

Price last update: 12/06/2025
View deal
  • • ✅ Get a five-piece deal of the AZDelivery 2004 LCD Display at a special quantity discount price!
  • • ✅ Display has 4 rows with 20 characters each in white text on a blue backlight. It has a Compatible with HD44780 driver chip which the micro-controller communicates with to control the screen.
  • • ✅ The module is a low-power consumption LCD Module with a built-in controller, its LED back-light enables viewing in dim lighting conditions.
  • • ✅ To control the screen, one of the two parallel modes can be used, 8-bit or 4-bit mode.
  • • ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

    Description

    This 20x4 LCD Display Module with an integrated HD44780 controller
    enables the display of 4 rows of 20 characters each in white text on a blue background, and is controlled by Raspberry Pi etc.
    The 20x04 LCD screen has a HD44780 driver chip. The micro-controller communicates with the driver chip to control the screen.
    Every pixel area can be turned ON/OFF by introducing the electricity through an on-board controller chip.
    The module is a low-power consumption LCD Module with a built-in controller, its LED back-light enables viewing in dim lighting conditions.
    The unit uses the HD44780 interface found in most parallel character displays.
    To control the screen, one of the two parallel modes can be used, 8-bit or 4-bit mode.
    In the 8-bit mode, all 8 data pins (D0 – D7) are used, and in the 4-bit mode, only 4 data pins (D4 – D7) are used.
    The VO pin uses analog voltage to set up the screen contrast level. Hardware contrast adjustment can be done by using voltage divider or potentiometer.



    Module dimensions
    		98 mm x 60 mm x 14 mm
    Resolution
    		20 Characters x 4 Lines
    LCD type
    		STN, Positive, Transflective, Blue
    Back-light
    		Blue
    View Angle
    		180 degrees
    Modes
    		Parallel (8-bit and 4-bit)
    Operating Voltage
    		3.3V and 5V
    Operating temperature
    		from -20°C to +70°C
    Storage temperature
    		from -30°C to +80°C





    For top quality Raspberry Pi products etc, AZ-Delivery Vertriebs is your go to.

    We provide an array of application examples, full installation guides, eBooks, libraries, and all round assistance.

    AZ-Delivery, your microelectronics expert.

    Product information

      • Brand:AZDelivery
      • Memory clock speed:800 MHz
      • Memory slots available:4
      • Manufacturer:AZDelivery
      • Part number:5x HD44780 2004 LCD
      • Item Weight:420 g
      • Package Dimensions:16.4 x 10.2 x 3.8 cm; 420 Grams
      • Manufacturer reference:5x HD44780 2004 LCD
      • Item Package Quantity:1
      • Batteries included?:No
      • Batteries Required?:No
