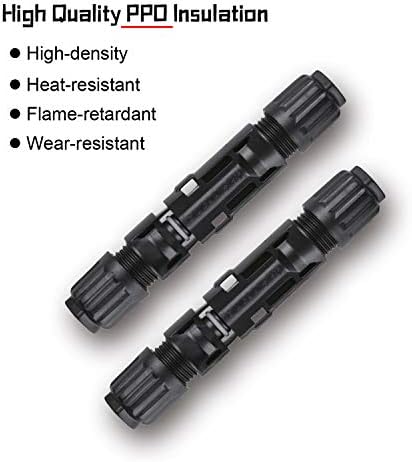

Witproton 2.5mm2-6mm2 Connector IP68 1500V Tinned Copper Sheet Terminal Black 5 Pairs (2.5mm2-6mm2(14 AWG-10 AWG))

Witproton 2.5mm2-6mm2 Connector IP68 1500V Tinned Copper Sheet Terminal Black 5 Pairs (2.5mm2-6mm2(14 AWG-10 AWG)) by Amazon.co.uk

Price last update: 12/06/2025

Description

IP68 Waterproof
Meeting the highest waterproof standard IP68, and not afraid of the rain or drip, can work under the 15m water in laboratory.
Safe Lock Housing
Meeting the new TUV requirement that the connectors are must be opened by tools, and can not by hands directly, which is also to avoid electrical shock when under load.
70A Solid Copper Pins
Solid copper pins can carry up to 70A current, higher quality and 25 years working life for your systems. Suitable with the cable special in 4mm2, 6mm2 or 10mm2.
40A Hollow Copper Pins
Hollow copper 4mm thick pins can carry up to 40A current, higher quality and 25 years working life for your systems. Suitable with the cable common from 2.5mm2 -6mm2.
Witproton PV Connectors
The connectors are must be opened by tools, and can not by hands directly, which is also to avoid electrical shock when under load.You can open the connector with our wrench.
Advantages
Simple on-site processing
Mating safety provided by keyed housings
Multiple plugging and unplugging cycles
Accommodates PV cables with different insulation diameters
High current carrying capacity
TUV (EN/IEC 50618), CE and ISO:9001
Technical Date of Solar Connectors
Rated Voltage
1500V
Rated Current
40A(2.5-6mm2)/70A(4mm2,6mm2,10mm2)
Safety Class
II
Overvoltage Category
CATIII
Contact Resistance
<0.5mΩ
Flame Class
UL94-V0
Insertion/ Withdrawal Force
50N/50N
Temperature Range
-40~+85 (-40~+185)(IEC)
Connecting System
Crimping Connection
Suitable Cable
OD 4.5-8.5mm (2.5-10.0mm²), depends on the size you purchased
Contact Materia
Copper, Tin Plated
Insulation Material
PPO
Degree of Protection
IP68
High copper content
> 97%
Factory
Professional in solar products since 2008.
Laboratory
Testing machines ensure product quality.
Application
Widely using in every corner in the world.
