Description

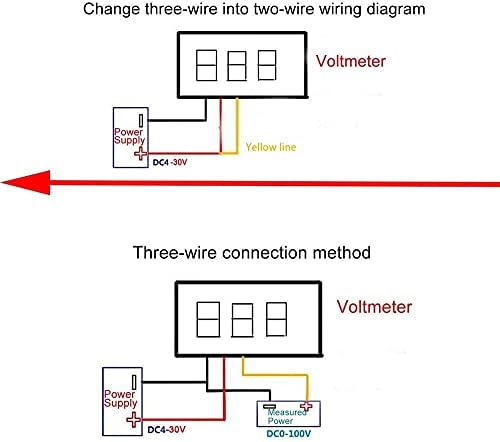

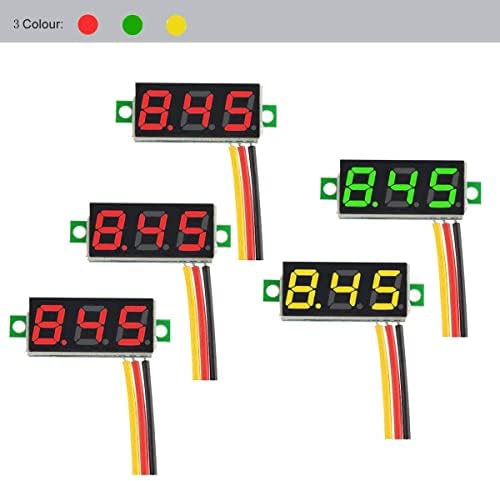

Working voltage: 4.0-30V Detection voltage: 0-100V Working current: Detection rate: ≥ 200 ms/time Mounting hole: 23 * 10 mm Measurement accuracy: 3% Working temperature: -10 ~ +65 ℃ Working humidity: 10~80% (non-condensing) Size: 22.5 * 10 * 7 mm Measurement rate: ge; 200mS/time Working pressure: 80~106kpa Wiring: Red wire: Power + Black wire: power supply-, measurement voltage- White line: measuring voltage Color: This package includes 3 colors three-wire mini digital DC voltmeter When the measured voltage is lower than 10V: the voltmeter displays two decimal places, for example, 6.66V When the measured voltage is greater than 10V, the voltmeter will display decimal digits, for example, 10.6V Package includes 3 red voltmeters 1 yellow voltmeters 1 green voltmeters
