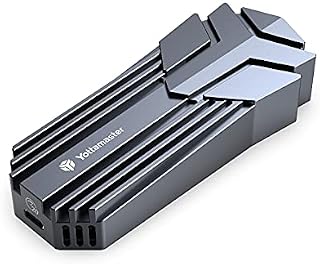

Yottamaster USB3.2 Gen2x2 NVMe Enclosure with Fan, 20Gbps Aluminum Gaming M.2 Enclosure Adapter for 2230/2242/2260/2280 NVMe M-KEY & B&M-KEY SSD, Up to 4TB, Support SMART&TRIM [MS4] by Amazon.co.uk

Currently Unavailable

Price last update: 22/05/2025
View deal
  • • 【Pay Attention】To achieve the best performance, the USB3.2 20Gbps nvme enclosure must be connected to your device that equipped with USB3.2 GEN2X2 port. If the computer lacks such a USB3.2X2 port, it can usually be retrofitted using a PCIe expansion card. Warning! Thunderbolt 3 is not supported, you will only get 10Gbps speed if you connect TB3 port.
  • • 【USB3.2X2 Port - Up to 2000MB/s 】This 20Gbps m.2 nvme adapter adopts USB3.2 GEN2X2 protocol - test with Samsung 970 EVO working on the computer equipped with a USB 3.2 Gen 2x2 interface, the read/write speed is up to 2000/1980 MB/s. It's a great solution for faster game loading, responsiveness and saving times, or handling multi-stream video editing, VR/AR/MR environments, and extreme gaming.
  • • 【Cooler Than Ever】Quadruple cooling design - A turbo cooling fan is located under the unique Logo-shaped heat dissipation holes, which ensures that the waste heat is released into the ambient air. The venting holes on the both side optimized the ventilation system. The heat fins largely increase the effective heat dissipation area. The internal silicone pad continuously conducts heat to the shell. Make your SSD stay cool even in most intense games.
  • • 【SSD and System Compatibility】The USB3.2 type-C m.2 enclosure can support M-Key & B&M-Key 2230/2242/2260/2280 NVMe SSDs. Support up to 4TB. Support Mac, Windows and Linux system. Plug and play, no driver needed, no extra power needed. You can monitor the working status of your SSD by the LED indicator light whenever.
  • • 【What You Will Get】1X Yottamaster USB3.2x2 20Gbps M.2 NVMe Enclosure with fan, 1X Type-C to Type-C data cable, 1X Silicone heat pad. 18-month warranty and lifetime technical support are provided.

    Compare Yottamaster USB3.2 Gen2x2 NVMe Enclosure with Fan, 20Gbps Aluminum Gaming M.2 Enclosure Adapter for 2230/2242/2260/2280 NVMe M-KEY & B&M-KEY SSD, Up to 4TB, Support SMART&TRIM [MS4] with other products:

    Description

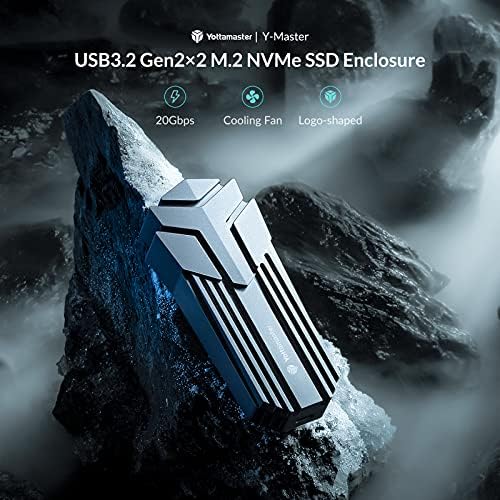

    Yottamaster USB3.2 GEN2X2 Type-C M.2 NVMe Enclosure for 2230/2242/2260/2280 M-key/B&M-Key SSDs-Specially Designed for Gamers
    USB3.2 GEN2X2 Type-C Interface - Blazing Speed
    The nvme enclosure features a SuperSpeed USB 20Gbps (USB 3.2 Gen 2x2) interface
    specifically designed for gamers, whether you prefer to boost your system's overall responsiveness or shorten load times as up to 2000MB/S transfer rate will provide your PC or console with the incredible performance enhancement.
    Even for the multi-stream video editing in real time or multi-layer effects rendering, can be easily handled.
    Actual Speed Test
    Since most computers are not equipped with an original USB3.2 GEN2X2 interface, in order to get the best performance, we retrofitted the PC host with a USB3.2 20Gbps expansion card. When tested with Samsung 970 EVO, the reading speed is up to 2032 MB/s, writing speed up to 1985 MB/s.
    Support Up to 4TB Capacity
    This gaming enclosure can support up to 4TB storage capacity, thus there's no need to waste time clearing room on your console or PC for new games. Capturing and collecting your most memorable in-game moments is much easier with the larger supported capacity.
    A massive of classical or truly extreme games that may not flash in your mind due to the limited performance or storage, now you can play everything at your pleasure.
    Optimized Cooling System-Quadruple heat dissipation design
    Active Cooling
    Built-in 30 mm diameter cooling fan
    , which directly pulls in cool air from the top vents, and exhales exhaust out the sided vents for optimal cooling of the SSD inside.
    Passive Cooling
    Logo-shaped cooling holes above the fan
    , plus the venting holes on both sides of the Type-C interface
    greatly optimize the internal ventilation structure. With the continuous action of the fan efficiently exchange the waste heat generated by ssd with cold air from outside through the venting holes, it keeps your SSD running in a lower temperature.
    Full aluminum body shell
    --Sustainably absorb the heat generated by the SSD.
    Heat dissipation fins
    --Expand the contact area with air and radiate heat.
    A thermal pad is provided
    --it will help transfer the heat air to the case.
    We know your biggest concerns
    -- High temperature damage to SSD. So we have carried out an extremely meticulous design on the product structure, and offered multiple cooling measures to ensure that it can operate at lower temps for longevity of the ssd and getting stable high-performance.
    USB3.2 GEN2X2 Typ-C 20Gbps
    The m.2 enclosure adopts USB3.2X2 protocol, theoretically speed can reach up to 20Gbps. To achieve better performance, it requests the connected peripherals to support USB3.2 GEN2X2 protocol or equipped with a USB3.2 GEN2X2 interface.
    You can use a 20Gbps expansion card to add a USB3.2 GEN2X2 interface to your host.
    Compatible SSDs & Systems
    It can support all standard 2230/2242/2260/2280 M-key/B&M-Key NVMe SSDs.
    It supports Windows/Mac OS/Linux systems.
    Auto-sleep function
    The m.2 enclosure will automatically enter sleep mode without data exchange within 10 minutes.
    This function is for energy saving and protection of your SSD.
    List of Motherboards Equipped with USB3.2 GEN2X2
    Ports:
    ASUS: ROG Maximus XII Extreme, ROG ZENITH II EXTREME ALPHA, ROG Zenith II Extreme, ROG Maximus XII Extreme, ROG STRIX B460-F GAMING, ROG STRIX B460-H GAMING, ROG STRIX B460-G GAMING, ROG STRIX B460-I GAMING
    MSI: Creator-X299, X299 PRO,X299 PRO 10G, MEG Z490 ACE,MEG Z490 UNIFY, MPG Z490 GAMING CARBON WIFI,MPG Z490 CARBON EK X, MPG Z490 GAMING EDGE WIFI, MAG Z490 TOMAHAWK, MAG B460 TOMAHAWK, CREATOR TRX40, TRX40-A PRO, TRX40 PRO WIFI, TRX40 PRO 10G
    ASRock: TRX40 taichi, TRX40 Creator,Z490 taichi, X299 taichi CLX, X299 Steel Legend
    EVGA\uff1aZ490 FTW WiFi 122-CL-E497-KR
    AMD: C9Z490-PGW, C9Z490-PG
    Speed
    20Gbps
    10Gbps
    20Gbps
    10Gbps
    40Gbps
    Interface
    USB3.2 GEN2X2 Type-C
    USB3.1 GEN2 Type-C
    USB3.2 GEN2X2
    USB3.1 GEN2 Type-C
    Thunderbolt 3
    Key Feature
    20Gbps transfer, Full aluminum, built-in fan, venting holes, heat dissipation fins
    temperature display
    for USB3.2 Gen2X2 expansion
    Full aluminum, snowflake-shaped heat dissipation fins
    40Gbps transfer, Full aluminum, snowflake-shaped heat dissipation fins
    Support SSD
    2230/2242/2260/2280 M-key/B&M-Key NVMe SSD
    2230/2242/2260/2280 M-key/B&M-Key NVMe SSD
    /
    2230/2242/2260/2280 M-key/B&M-Key NVMe SSD
    2280 NVMe SSD
    Support Capacity
    4TB
    4TB
    /
    2TB
    2TB

    Product information

      • Hardware interface:USB, Thunderbolt
      • Brand:Yottamaster
      • Colour:MS4
      • Item dimensions L x W x H:22 millimetres
      • Compatible devices:Personal Computer
