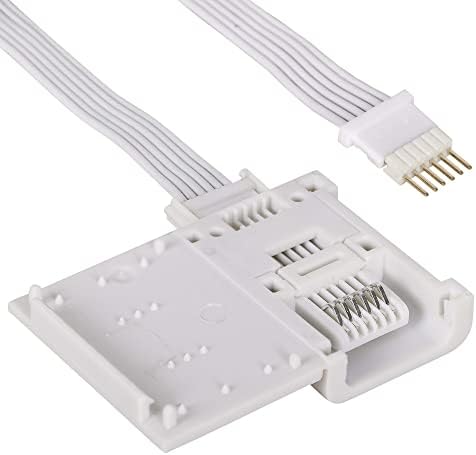

Litcessory 6-Pin to Cut-End Extension Connector for Philips Hue Lightstrip Plus (50mm, 4 Pack, White - Micro 6-PIN V4) by Amazon.co.uk
- • \u2714 ATTENTION -- SELECT THE CORRECT VERSION: Philips makes TWO versions of their lightstrips (Standard 6-Pin V3 and Micro 6-Pin V4). The Micro 6-Pin V4 has a smaller pin connection and IS bluetooth compatible, while the Standard 6-Pin V3 features larger pins and is NOT bluetooth compatible. Please see the image with both connectors to determine the correct version you have before purchasing. NOTE: This product is NOT compatible with Hue Play and Hue Gradient.
- • \u2714 ENDLESS DESIGN -- create breaks in your lightstrips, run lights under cabinets, create lighting for shelves, or connect lightstrips across an entire room -- the possibilities are endless!
- • \u2714 EASY INSTALLATION -- easy to use! Our cables are flat & flexible AND all pin connectors are removable.
- • \u2714 TECH SPECS -- designed for the Philips Lightstrip system, supports runs up to 10 meters, cable is UL listed, made for indoor locations only.
- • \u2714 REQUIRED -- if you want to connect this product directly to the Philips Lightstrip Controller, you MUST use our Controller to 6-Pin Adapter.
- • \u2714 LITCESSORY\u2019S HASSLE-FREE 2 YEAR WARRANTY -- We know you\u2019ll love this product, but if you have any issues at all, just send us a message and we\u2019ll be happy to assist!
Compare Litcessory 6-Pin to Cut-End Extension Connector for Philips Hue Lightstrip Plus (50mm, 4 Pack, White - Micro 6-PIN V4) with other products:
Description
Philips Hue is great, but it only allows for a single, continuous lightstrip run. Litcessory products allow for several! This cut-end to 6-pin extension connector, specifically designed for the Philips Hue Lightstrip system, enables you to connect a cut lightstrip to an uncut Philips Hue Lightstrip Extension or any other Litcessory product (extension cable, splitter, etc.). No more wasting costly lightstrip pieces! You can also use this connector to create corners for your lightstrip run, allowing for more design flexibility than ever before! Our cables are flexible and flat, which makes them inconspicuous - perfect for designing your ideal lighting setup!
NOTE:
If you want to connect this product directly to the Philips Lightstrip Plus Controller, you MUST use the Litcessory \u201cController to 6-Pin Adapter" to do so.
If you want to connect to a cut lightstrip, you must use one of our 6-pin to Cut-End products. Please see our product line chart below for more info.
This product is great for...
Reusing the end of a cut lightstrip
Inserting a corner into a lightstrip run
Important things to keep in mind...
Male ends are removable, converting them to female.
Supports lightstrip runs up to 33 feet/10 meters (lightstrips and extension cables combined).
Cable is UL Listed.
Made for Indoor Dry Locations Only.
Top Uses of a Litcessory 6-Pin to Cut-End Extension Connector
Frequently Asked Questions:
1. Will Litcessory products cause my lightstrip to be dimmer?
No, Litcessory products do not affect the brightness of the lights, as long as your total lightstrip run length (lightstrips plus any Litcessory product length) stays within 10 meters, your lights will be just as bright!
2. What is reverse polarity, and how do I fix it?
Reverse polarity happens when you plug in the wrong side of a 6-pin connector. The flow of electricity gets reversed, and the lightstrip won’t turn on. This is a common occurrence when setting up your project and it is easily fixed.
3. I used a cut-end connector and now my lightstrip colors don’t match. How do I fix this?
If your lights are not the right colors after connecting a cut-end connector, this means that the cut-end connector is not making a solid connection with the connection points on the lightstrips. Try the following:
Unplug the power source
Ensure the backside of the connection points (the side opposite of the LED lights) are making contact with the cut-end connector’s metal prongs, and that it is fully inserted.
Close the lid of the cut-end connector and clamp down with a pair of pliers. Use plenty of pressure. You should hear a slight \u201csnap\u201d.
To ensure your cut-end connector stays tight, you can wrap the cut-end connector tightly with electrical tape.
If you are still having issues after trying the above steps, please contact our awesome support team. We are always happy to help!
4. I have a cut Lightstrip. How do I connect another Lightstrip to it?
To connect to a cut Lightstrip, you will need a Litcessory Cut-End Connector. We have several options to choose from. Our Cut-End to Cut-End Connectors or our Cut-End to Cut-End Extensions allow you to connect two cut lightstrips with cut ends together. Our Cut-End to 6-Pin Extensions allow you to connect a cut lightstrip to an uncut Lightstrip.
5. I have a cut lightstrip and I need to add a Litcessory extension cable. How do I connect this?
To connect two cut lightstrips together with a Litcessory Extension Cable you will need our Cut-End to 6-Pin Connector.
Connect to Cut-End to 6-Pin Connector to each cut lighstrip.
Plug the extension cable into the 6-pin side of the Cut-End to 6-pin connector
6. Can I split cut ends?
Yes, you can do that by using first converting your cut-end into a 6-pin end by using our Cut-End to 6-Pin Extension or our Cut-End to 6-Pin Adapter and adding our extension cable to it.
How to install the Cut-End Connector Step 1
Unplug the Lightstrip.
Turn the lightstrip on its side and create a puncture mark, then cut a small slit into the plastic.
Tear the plastic sheathing across the lightstrip.
Cut away from the lightstrip and remove the extra plastic.
Make sure the plastic is removed from both sides of the lightstrip.
How to install the Cut-End Connector Step 2
Cut down the center of the solder points with a pair of sharp scissors.
How to install the Cut-End Connector Step 3
Insert the cut lightstrip into the cut-end connector.
Ensure that the lightstrip is fully inserted and that the solder points are beneath the metal prongs.
How to install the Cut-End Connector Step 4
Close the connector lid.
Use a pair of pliers to apply a good amount of pressure to the lid and ensure it snaps closed.
To ensure your cut-end connector stays tight, you can wrap the cut-end connector tightly with electrical tape.
Step 1
Step 2
Step 3
Step 4
Compatible with Philips Hue Lightstrip Plus
✓
✓
✓
✓
✓
✓
Can be placed between the controller and the first lightstrip
Yes, with the use of our Controller to 6-Pin Adapter
Yes, with the use of our Controller to 6-Pin Adapter
Not Applicable
Not Applicable
Yes, with the use of our Controller to 6-Pin Adapter
Not Applicable
Supports lightstrip runs up to 33 feet/10 meters (lightstrips and extension cables combined)
✓
✓
✓
✓
✓
Not Applicable
Cable is UL Listed
✓
Not Applicable
✓
✓
✓
Not Applicable
Indoor/Outdoor
Indoor Only
Indoor Only
Indoor Only
Indoor Only
Indoor Only
Indoor Only
Connection Type
6-Pin to Cut-End
6-Pin to Cut-End
Cut-End to Cut-End
Cut-End to Cut-End
6-Pin to 6-Pin
Not Applicable
6-Pin Connector Removable?
✓
✓
Not Applicable
Not Applicable
✓
Not Applicable
Product information
- Brand:Litcessory
- Colour:White (Micro 6-pin) - V4
- Certification:UL
- Manufacturer:Litcessory (Philips Compatible)
- Package Dimensions:16.4 x 10.8 x 1.5 cm; 20 Grams
- Item model number:HUE-6pToCut 50mm-W04
- Part Number:HUE-6pToCut 50mm-W04
- Batteries included?:No
- Batteries Required?:No
- Item Weight:20 g
