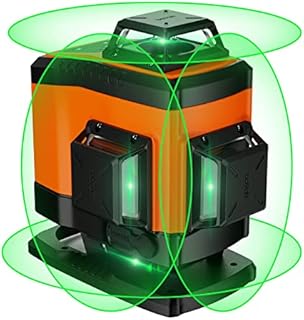

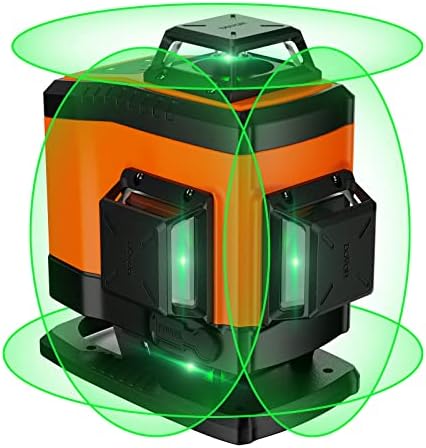

DOVOH Laser Level Self Leveling : 16 Lines 4d Laser Level Self-Leveling 4x360 Green Beam for Floor Tiling and Ceiling Dual Rechargeable Batteries Magnetic Bracket Included, K4-360G by Amazon.co.uk

Price last update: 10/05/2025
  • 【Laser Level 4d 360 16 Line】The green laser level 4d have 2x360° horizontal plane and 2x360° vertical plane lasers, which covers tiling, ceiling, and square layout applications. It provides pulse mode which extend the laser range up to 197ft with a laser receiver, it is ideal for long range or outdoor use.
  • 【Self-Leveling & Manual Mode】Slide the pendulum to unlocked position to turn on the laser levels self leveling, and the self-leveling mode is active. The laser tool beeps and the beams blink fast when the laser is out of self-leveling range (±4°). Lock the pendulum to active the manual mode, the laser line can be fixed at any angle, it is ideal for picture hanging, wall tiling, floor tiling, etc.
  • 【Dual Li-ion Batteries】Dual 7.4V 2600mAh lithium rechargeable batteries enable the 4d laser level 360 green 16 lines to keep working for over 14 hours with 16 lines fully opened. The battery can be charged by the provided charger with a USB-C cable, which enables you to charge the battery with a wall charger, laptop, power bank, or car charger.
  • 【Magnetic Bracket & Lifting Base】This laser level for flooring include a magnetic bracket and a lifting base. The bracket provides 4 positioning methods, include hanging on the nail, fix on a thin board, adhere on magnetic surface and connect to a tripod.
  • 【Warranty & Packing List】DOVOH is committed to provide first-class of product quality and excellent customer service, we provide 1 year warranty for all DOVOH laser level and lifetime customer support. Package include: K4-360G 4D laser level, Magnetic Bracket, Lifting Base, Green Target Plate, 7.4V 2600mAh Batteries (2pcs), Battery Charger, Power Adapter w/ USB-C Cable, User Manual, Carrying Bag.

    Compare DOVOH Laser Level Self Leveling : 16 Lines 4d Laser Level Self-Leveling 4x360 Green Beam for Floor Tiling and Ceiling Dual Rechargeable Batteries Magnetic Bracket Included, K4-360G with other products:

    Description

    Why choose DOVOH laser level? Accuracy!
    Accuracy Leads To First-class Level
    Based on metal blade axicon technology, DOVOH use high-precision axicon component to reflect high accuracy of leveling laser line.
    DOVOH adopts enhanced pendulum framework to ensure the consistently high accuracy and durability.
    DOVOH laser level features durable housing which is constructed from high quality plastic surrounded by rubber edge, and the laser cover is made from aluminium alloy to protect the device from unexpected drop.


    Package Include:
    1 x 4D Laser Level


    1 x Magnetic Bracket


    1 x Lifting Base


    1 x Green Target Plate


    2 x Li-ion Batteries


    1 x User Manual


    1 x Carrying Bag


    1 x Type-C Cable, Adapter, Charger















    Specification

    Model
    K4-360G
    Laser Class
    Class Ⅱ
    Working Range (300LUX)
    66ft/20m
    Working Range (with receiver)
    130ft~197ft/40m~60m
    Working Time w/ 4 laser lines
    26 hours
    Working Time w/ 8 laser lines
    16 hours
    Working Time w/ 12 laser lines
    8 hours
    Working Time w/ 16 laser lines
    6 hours

    Laser Type
    520nm, <1mw
    Self-leveling Range
    ±4°
    Self-leveling Time
    < 4 seconds
    Leveling Accuracy
    ±1/13 in. at 33ft (±2mm/10m)
    Thread Mount
    1/4"-20
    IP Rating
    IP54 water/dust proof
    Charger
    Input:5V=1A, Output:500mA
    Power Adapter
    5V=1A










    Self-Leveling & Manual Mode
    The laser level 4d 360 16 line provides Self-Leveling and Manual Mode which can self-level or fix the laser line angle, it can be used on various of applications.

    Green Target Plate
    This laser level 4 x 360 include a green target plate, the special reflective film can increase the visibility of the green beam, it is suitable for use on outside or long range.

    Waterproof & Dustproof
    The green laser level 4d feature IP54 waterproof, dustproof, shock-resistant, it is durable and reliable, the high quality and solid housing material ensures the long life span.















    Metal Protective Cover
    The 16 line laser level green beam equipped a metal top cover, it is made from aluminium alloy material, it is durable enough to protect the diodes from dropping.

    Multifunctional Magnetic Bracket
    The laser level for flooring include a Multifunctional Magnetic Bracket, it allows you fix the laser level via 4 useful methods.

    Package Contents
    Package include: K4-360G 4D laser level, Magnetic Bracket, Lifting Base, Green Target Plate, 7.4V 2600mAh Battery (2pcs), Battery Charger, Power Adapter w/ USB-C Cable, User Manual, Carrying Bag.


















    Number of Line Lasers
    12
    16
    12
    12
    Horizontal Line
    Top Only
    Top & Floor
    Floor Only
    Floor Only
    Threaded Mount
    1/4"
    1/4"
    1/4"
    1/4"
    Working Range(300LUX)
    66ft/20m
    66ft/20m
    66ft/20m
    66ft/20m
    Power Supply
    7.4V 2600mAh Li-ion Battery
    7.4V 2600mAh Li-ion Battery
    7.4V 2600mAh Li-ion Battery
    7.4V 2600mAh Li-ion Battery
    Accessories
    Magnetic Bracket
    Magnetic Bracket
    Pivoting Magnetic Bracket
    F-clamp Bracket
    Leveling Accuracy
    ±2mm/10m (± 1/13 In. at 33 Ft)
    ±2mm/10m (± 1/13 In. at 33 Ft)
    ±2mm/10m (± 1/13 In. at 33 Ft)
    ±2mm/10m (± 1/13 In. at 33 Ft)
    Diode Power
    30mw
    30mw
    30mw
    30mw
    Case
    Carrying Bag
    Carrying Bag
    Hard Toolbox
    Carrying Bag
    Remote Control
    X
    X

    Product information

      • Brand:DOVOH
      • Material:Acrylonitrile Butadiene Styrene
      • Colour:Green Laser
      • Style:4x360°
      • Manufacturer:DOVOH
      • Part Number:K4-360G
      • Package Dimensions:28.8 x 24.21 x 17.7 cm; 2.04 Kilograms
      • Batteries:1 Lithium Ion batteries required. (included)
      • Item model number:K4-360G
      • Power Source:AC/DC
      • Item Package Quantity:1
      • Usage:Professional, outdoor and indoor
      • Included Components:1 x Magnetic Multi-functional Base, 1 x Laser Target Plate, 1 x Carrying Bag, 1 x K4-360G 4D Laser Level, 2 x 7.4V 2600mAh Li-ion Batteries
      • Batteries included?:Yes
      • Batteries Required?:No
      • Battery Cell Type:Lithium Ion
      • Item Weight:2.04 kg
