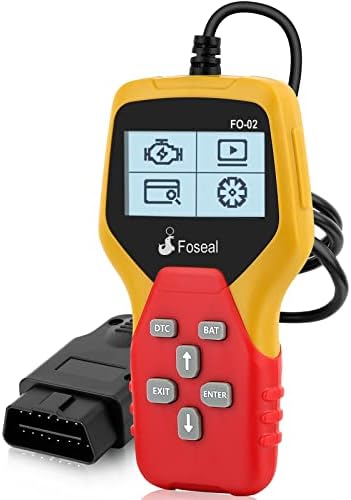

Foseal Wired OBD2 Scanner, Plug and Play OBDII Code Reader, Car Diagnostic Tool for Vehicle Engine Fault Code

Foseal Wired OBD2 Scanner, Plug and Play OBDII Code Reader, Car Diagnostic Tool for Vehicle Engine Fault Code by Amazon.co.uk

Currently Unavailable

Price last update: 24/05/2025

View deal

Description

OBD2 Scanner, Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool
Auto OBDII Scanner is a must have tool in your garage, it is a great upgrade from the more basic diagnostic Code Reader
The major function of this scanner is detecting the Engine System, read and clear the error codes.
Once plugged into your vehicle's 16pin OBDII DLC, the unit will power up and prompt you to start your ignition.
With this OBD2 code reader, you can easily determine the root cause of the MIL without searching on the Internet to waste your energy. The practical features make it extremely useful for car owners who want to do DIY diagnoses, anytime and anywhere.
OBD II Diagnosis
When diagnostic instrument detects multiple vehicle control modules, the system will prompt you to select the module that can retrieve the data. Power assembly control module [PCM] and gearbox control module [TCM] are the commonly options.
Caution: Do not connect or disconnect any test equipment when ignition switch is opening or engine is running.
Turn off ignition switch.
Find the vehicle 16 pin data link connector (DLC).
Insert OBD II wire to vehicle DLC.
Turn on ignition switch. Engine stops or runs.
Press Return/Confirm button to enter diagnostic menu. A series of OBD2 protocol information will be displayed on the display screen, until the vehicle protocol is detected.
After the system status (Diagnostic indicator state, diagnostic code counting, monitor state) is displayed, wait for several seconds or press any key to display the diagnostic menu.
If decoder can not communicate with the vehicle ECU(engine control unit), Connection error! will be displayed on the display screen.
Confirm ignition switch is turned on;
Check if OBD II connector of decoder is connected to vehicle DLC;
Confirm the vehicle is accorded with OBD2 standard;
Turn off the ignition switch and wait for about 10 seconds. Turn the ignition switch back on
If Connection error information still appears, and then it may be the communication between decoder and vehicle has the problem. Please contact the local dealer or the Service Department of the manufacturer for getting the help.
Multi-Functions OBD2 Code Reader Scanner for All OBD II Protocol Cars Since 1996
Support CAN and OBDII Protocols
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init,10.4 Kbaud)
ISO14230-4 KWP (5 baud init10.4 Kbaud)
ISO14230-4 KWP (fast init)
ISO15765-4 CAN (11bit, 500 Kbaud)
ISO15765-4 CAN (29bit, 500 Kbaud)
ISO15765-4 CAN (11bit, 250 Kbaud)
ISO15765-4 CAN (29bit, 250 Kbaud)
Plug and Play Code Reader
Handhold Design OBD2 Code Reader, plug and play, fast scan and clear trouble codes, very easy to use, even a beginner can use this unit to read the error code, with definition of code display on screen, you can find out what the problem is and fix the easy ones yourself. Save money and time,you no longer do you need to rely on going to a mechanic to read and clear your cars fault code.
Vehicle Coverage
This OBD II / EOBD decoder is specially applied to all the vehicles that accorded with OBD II standard, including the vehicles for preparing the next generation of protocols - controlling the area network (have the capacity). All the vehicles selling in USA as required by United States Agency, and 1996 newer (automobile) light trucks must be accorded with OBD II standard. Including all the domestic, Asian and European vehicles.
A small amount of 1994 and 1995 petrol vehicles are accorded with OBD II standard. If need to verify if 1994 or 1995 vehicles are accorded with OBD II standard, please check the vehicle emission control information (VECI) label, most vehicles are stuck this label under the engine jacket or near the radiator. If the vehicle is accorded with OBD II standard, and then its label is marked with OBD II certification. In addition, the government laws and regulations require all the vehicles that are accorded with OBD II standard must have General 16 pin data link connector (DLC).
If your vehicle is accorded with OBD II standard, there must a 16 pin DLC (data link connector) below the instrument panel, and a vehicle emission control information label states the vehicle is accorded with OBD II standard.
Affordable and Professional OB2 Scan Tool
To help you face the emission-related problems, the Foseal Car Scanner has gathered the OBD functions. Before running the test, the scanner can tell you the basic situation of your emission system or anything waiting to be fixed. So, you could have a clear idea about what to do.
Read and Clear the DTCs
: Check and turns off Engine Light (CEL) and resets monitors.Retrieves both generic and manufacturer-specific codes and shows the DTC and its detailed description simultaneously, and erases the DTCs and other.
View Freeze Frame Data
: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
I/M Readiness Status
: Monitor the cars emission-related systems' status to check if they are ready for the emission test.
VIN Retrieval
:Our OBD2 scan tool retrieves the Vehicle Identification No. (VIN), Calibration ID(s), Calibration Verification Nos. (CVNs). This function is especially useful while buying a used car to check whether the VIN matches and make sure the ECU has not been replaced.
Live Data
: Displays live or real-time data of ECU modules to analyze or monitor the components running status.
