ORICO USB C Docking Station, 9-in-1 Laptop USB C Dock with M.2 NVMe SSD Case, 100W PD, 3 x 10Gbps USB3.1 USB-A, USB3.1 Type-C, HDMI 4K 60Hz, TF/SD, Ethernet RJ45, 3.5 mm audio. Mic by Amazon.co.uk
- • 4TB storage expansion with M.2NVMe enclosure: with which you can install M.2 NVMe M key and B&M key 2230/2242/2260/2280 NVMe SSDs (not for M.2 SATA SSD) to extend storage and update the system, backup files, retrieve and restore data and Transfer data. Provides a transfer speed of up to 1000 MB/s via the USB 3.1 Gen2 interface, 1GB file in 1 second. Up to 4TB supported
- • 4K @ 60Hz media display: with the 4K @ 60Hz video adapter, you can mirror or extend your screen for video and audio transmission to HDTV, monitor or projector. You can enjoy movies with your family on a larger screen or make a vibrant presentation a meeting. Support MST function (Note: Mac system is not supported, Windows system can be fully switched with the Windows key +P)
- • 10Gbps Super Speed + 100W PD Charging: USB 3.1 Gen2 10Gbps speed, only takes 1 second to transfer/back 1GB of videos, music, photos and other files. Backwards compatible with USB 3.0/2.0/1.1 devices. 100W PD quickly charge your laptop whether you're working or talking.
- • Gigabit Ethernet + SD/TF Card Reader: The 1000Mbps Ethernet port brings you one HD movies more reliable, stable, faster and also supports 10/100/1000 BASE-TX Auto MDI/MDI-X. With the SD/TF card reader, you can easily transfer photos or videos from your camera from cards to laptop. Note: TF and SD card can not be used at the same time.
- • Improved heat dissipation: the striped aluminium alloy shell can extend the heat dissipation area and effectively reduce the damage caused by the heat generated by the high-speed work of the SSD. (Slightly striped shell extends heat dissipation, the temperature on the surface is about 50 \u2103, which is a normal phenomenon, please be careful when touching. The data comes from the ORICO laboratory).
Compare ORICO USB C Docking Station, 9-in-1 Laptop USB C Dock with M.2 NVMe SSD Case, 100W PD, 3 x 10Gbps USB3.1 USB-A, USB3.1 Type-C, HDMI 4K 60Hz, TF/SD, Ethernet RJ45, 3.5 mm audio. Mic with other products:

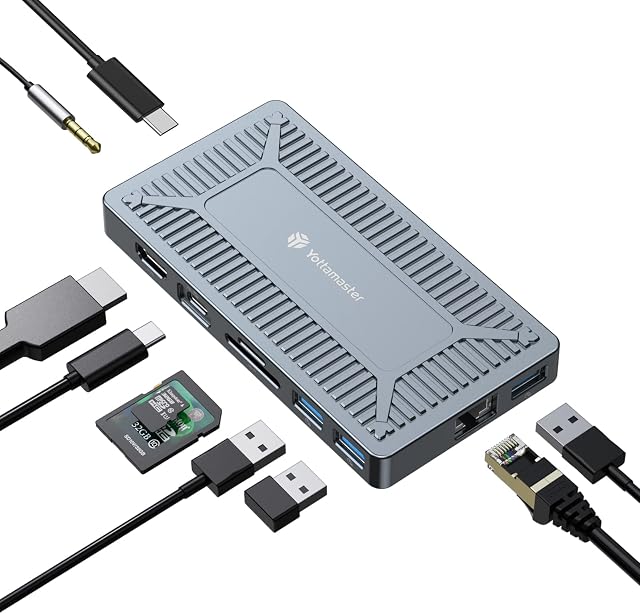

![Yottamaster USB C Dock with NVMe Enclosure, PD100W Charging Dual 4K Laptop Docking Station Support HDMI, Ethernet, TF&SD Cards, Audio, 5 USB Ports-[SO6]](https://m.media-amazon.com/images/I/717Z3QJ2G3L._AC_SL640_.jpg)
Description
10-in-1 Multifunctional Dock to transfer data among all your devices and expand what you want. No more limited device storage and sluggish data transfer. One is All!
1. M.2 NVMe Enclosure:
An NVMe slot is equipped at the bottom of the dock. You can insert an M.2 NVMe SSD to extend additional storage up to 4TB, which supports a 10Gbps transfer speed.
It supports M-Key and B&M-Key 2230/2242/2260/2280 NVMe SSDs. Do not support SATA drives.
2. USB Ports - 10Gbps faster speed:
There are 3 * USB A ports and 2 * USB C ports extended with the dock. All USB ports achieve up to 10Gbps faster speed.
USB A/USB C port Input: Max 5V/1.5A, Output: 5V/0.9A
While connecting the dock with the external power supply,
USB A port output: 5V/1.5A
USB C port output: 20V/3A (5A Max)
(Please note the PD charger is not provided )
3. HDMI Port:
The HDMI port supports 4K@30Hz display with a maximum 3840\xd72160 resolution for a better entertainment experience.
Support MST function (Note: not support Mac system, Windows system can be completely switched by Windows key +P)
4. Gigabit Ethernet-1000M:
The USB C dock is equipped with an RJ45 Gigabit Ethernet port and supports a stable network speed up to 1 Gbps and auto 10/100/1000Mbps.
5. Audio In & out:
The 3.5mm Audio Port with mic and audio-out function.
6. SD/TF Card Reader (Speed up to 104 Mbp/s):
Suit for USB-C/Type-C/Thunderbolt 3 devices to access files from SD/TF card reader, quickly view your photos or videos, perfect for Photographer or or Video editor, etc.
Upon plugging in 1x RJ45 Ethernet port into the docking station, the connection is automatically identified and adjusted according to your local network, which supports high speeds up to 1000Mbps.
This is 3-4x times faster than most common WI-FI connections and greatly assists in lag-free video conferencing, low latency gaming, and downloading/uploading large media assets or content.
The USB C dock supports PD3.0, which provides max 100W(20V/5A) fast charging to your computer via the USB C charging port. Note: Please use a PD fast charger for charging it.
1x 9 in 1 NVMe Docking Station
1x 10Gbps USB C to USB C data cable (length: 1M/3.3FT)
1x screwdriver
1x instruction sheet
3.5mm audio port support audio input and output and is compatible with devices including speaker, earphone and microphone.
TF/SD slots easily transfer your MacBook into a showcase for stored photos and videos.
Measuring just 5.45 \xd7 2.87 inches and weighing 180g, power expand fits easily into your bag for effortless portability.\uff09
1.Full operation will heat the surface temperature about 50℃ and with superior heat dissipation performance of aluminum alloy, safe and stable operation will be promised.
2.The 10 Gbps theoretical transmission speed only achieves when both the output device and the data line support 10Gps transmission.
3.100W PD fast charging effect only achieves when charging devices support 100W PD fast charge.
4.1000M broadband speed only achieves when real broadband speed reaches up to 1000M; backward-compatibility available.
5.4K resolution only achieves when display devices support 4K resolution or the picture resolution is 4K; only Windows OS support MST.
6.Backward-compatible resolution: 2K@30Hz/60Hz, 1080P @30Hz/60Hz
7.3.5mm audio port supports audio input and output and computer with a sound card is required.
8.OTG function need mobile phone support.
Part of SSD will activate protected mode and the writing speed will be limited greatly when first use. To achieve better performance, please operate as follow: (Windows 10 for example):
Right click 'This PC' on your desktop – 'Manage’ – ‘Disk Management’- Find and right click on your SSD – 'Properties' – 'Hardware' – 'Properties' – 'Policies' – Tick 'Better Performance'.
Click 'This PC' on your desktop – Find and right click on your SSD – 'Properties' – 'Hardware' – 'Properties' – 'Volumes' – 'Populate' - 'Policies' - Tick 'Better performance'.
Product Material
Aluminum alloy
Aluminum alloy
Aluminum alloy
Aluminum alloy
Aluminum +ABS
Aluminum +ABS
Product Color
Grey
Grey
Grey
Grey
Grey/Sliver
Grey/Sliver
Power Input
USB3.1 Type-C
Type-C
Thunderbolt 3
Thunderbolt 3
Type-C
Thunderbolt 3
Power Output
3\xd7USB3.1 Type-A 1\xd7USB3.1Type-C 1\xd7HDMI 1\xd7TF/SD 1\xd7RJ45 1\xd7Audio/Mic
1\xd7HOST 2*HDMI 4K Ports & 1\xd7DP 4K Port 1\xd7PD Port 100W & 1\xd7Ethernet Port 4\xd7USB2.0 Ports & 2\xd7USB3.0 A Ports & 1\xd7USB 3.0 CPort& 1\xd7USB C In 1\xd7SD & 1\xd7TF Card Ports 1\xd73.5mm Audio & 1\xd7 Mic Jack 1\xd7100CM USB C to USB C cord
2xThunderbolt 3 Input/Output (40Gbps) 2xUSB3.1 Gen 2 (Type C 10Gbps) 1xUSB3.1 Gen 2(USB A 10Gbps) 2xUSB3.1 Gen 1(USB A 5Gbps) 2xUSB2.0(480Mbps) 1xDisplayport 1.4\uff084K@60Hz 3840x2160) 1xRJ45 LAN(1000Mb/s) 1xSD/TF/S/PDIF
Thunderbolt 3 input/output interface x 2, USB3.1 Gen 2 Type Cx 2, USB3.1 Gen 2 A x 1, USB3.1 Gen 1 A x 2, USB2.0 A x 2, DP1.4 x 1, RJ45 LAN x 1, SD/TFx 1, Headphone Out/Mic Combo x 1, S/PDIF x 1
USB-A3.0(5Gbps)\xd72,USB-A2.0(480Mbps)\xd74,USB-C3.0(5Gbps)\xd71,TF(microSD)/SD\xd71,HDMI(4K@60Hz)\xd72DP(4K@60Hz)\xd71,RJ45(1000M)\xd71,Audio\xd71, PD(100W)\xd71
Thunderbolt 3、USB-C3.1 Gen 2 \xd72、USB-A 3.1 Gen 2\xd71、USB-A 3.1 Gen 1\xd72、USB-A2.0\xd72、DP 1.4\xd71、RJ45\xd71、SD/TF\xd71、Audio/Mic\xd71、S/PDIF\xd71
Gigabit Ethernet
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
Maximum Resolution
HDMI:4K/30HZ
3840x2160@60Hz
1.4 8K@60HZ
4K@60Hz 3840x2160
Dual 4K@60Hz & Single 5K@60hz
Single 8K @ 30hz, Dual 4K@60Hz
Data Transfer Speed
10Gbps MAX
USB3.0 5GbpsUSB2.0 480mbps
40Gbps MAX
40Gbps MAX
5Gbps
40Gbps MAX
Dimensions
141mm(L)*73mm(W)*16.5mm(H)
107(L)*47.5(W)*132.5(H)mm
188mm(L)*95mm(W)*24mm(H)
146mm(L)*107.1mm(W)*47.5mm(H)
102(L)\xd760(W)\xd7159(H)mm
102(L)\xd760(W)\xd7159(H)mm
Support System
Windows / Mac / Linux
Windows / Mac/Chrome OS
Windows / Mac
Windows 10/ Mac OS
Windows 8/10, Mac os
Windows 10, Mac os
Audio In & Out
✓
✓
✓
✓
✓
✓
Product information
- Brand:ORICO
- Colour:9 in 1
- Hardware interface:Solid State Drive, USB Type C, USB Docking Station, Ethernet, HDMI, Secure Digital Card, USB 3.2 Gen 2
- Compatible devices:Projectors, Digital Cameras, Monitors, Card Readers, Laptops
- Total USB ports:3
- Item dimensions L x W x H:14.1 x 7.3 x 1.8 centimetres
- Number of ports:9
- Item weight:800 Grams
- Total HDMI ports:1
- Wattage:100 watts
