Spurtar Stainless Steel Vernier Caliper Tolerance 0.05mm 1/128in, Precision Caliper Measuring Tool - Reading Non-Glare

Spurtar Stainless Steel Vernier Caliper Tolerance 0.05mm 1/128in, Precision Caliper Measuring Tool - Reading Non-Glare by Amazon.co.uk

Price last update: 12/06/2025

View deal

• High Precise: Spurtar vernier caliper is a high accuracy caliper measuring tool with a deviation of only 0.05mm, available in both metric and imperial scales of measuring range 0-6 inches (0-150 mm). There is a locking screw on the top of caliper to help you hold the data from moving and changing if you need
• 4 Measuring Way & Clear Scale Mark: Vernier caliper tool provides precise measurement of outer diameter (OD), inner diameter (ID), depth and step. For more clear reading, the graduated area is matte chrom surface treatment for non-glare readings, the graduated scale line adopts engraving process, not ordinary ink printing. No worry about the numbers and scales will wear & fading caused by long-term use or oil stains
• No Batteries Required: Vernier caliper can be always work, you will never have downtime due to a dead battery like a digital caliper
• Advantages: Vernier caliper has fewer moving parts makes there less to go out of calibration or break, is built to last. Secondly, except for operator error, the vernier caliper itself won't cause any inaccuracy, but accuracy of the digital caliper and dial caliper itself is sensitive to magnetic fields, current, vibrations, storage environments (damp, oil, dirt, water, etc.) chip failures and other factors
• Wide Application: Spurtar caliper is preferred to woodworkers, mechanics, auto mechanics, plumbers, jeweler workers, home DIY lovers, hobbyists, even the professionals

Description

Stainless Steel Precision Caliper with Locking Screw DIN 862, Measuring Range 0-150mm by Spurtar
Are you looking for a quality caliper tool for either your daily or professional use?
Spurtar metric & imperial dual scale vernier caliper provide you precise measuring including external diameter, internal diameter, depth, and step measuring.
Micrometer are precision measuring instruments with a higher accuracy level. It is one of the best calipers to measure the least count of any object. Also it is a very important tool in the manufacturing industry.
A high quality vernier caliper is not only built to last but also no need to worry about dead battery like a digital caliper.
Metric and Imperial dual reading scale, 0mm-150mm / 0-6 inch measuring range, 0.05mm/0.0078 inch resolution, 1/128 inch accuracy

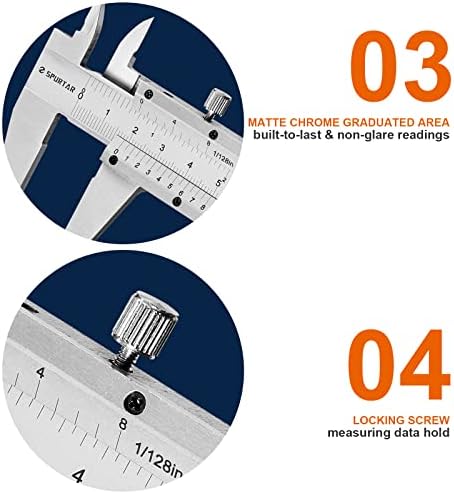

Matte chrome surface treatment graduated area for non-glare readings
Engraving graduated scale line, no worry about the numbers and scales will wear & fading caused by long-term use or oil stains
Battery-free, no worry stop use due to dead battery like a digital caliper
Accuracy is not affected by magnetic fields, currents, vibrations, storage environments (moisture, oil, dirt, water, etc.), chip failures and other factors
Specifications:
Measuring Range: 6inch / 150mm
Vernier Scale Resolution: 1/128 inch / 0.05mm
Item Weight: 165g
Material: Stainless Steel
Package Include: 1 x Stainless Steel Vernier Caliper; 1 x Steel Ruler; 1 x Cleaning Cloth
Outer Diameter Measuring
Measuring the outer diameter of objects with the long jaw.
Using Tip 1: While measuring the outside diameter with vernier caliper the plane of the measuring tips of the calipers must be perpendicular to the center line of the work piece.
Inner Diameter Measuring
Measuring the inner diameter of objects with the top jaw.
Using Tip 2: Please make sure to grip the measuring object gently with the jaws. This is extremely important while measuring objects which are easily deformable
Depth Measuring
Measuring the depth of the hard-to-reach objects with the tailed long probe.
Using Tip 3: Loosen the locking key of the vernier caliper and make sure there is no friction between the scales while moving the jaws of the vernier caliper
Step Measuring
Measuring the height / Length with its step design.
Using Tip 4: The measuring instrument must be properly balanced in hand and held lightly in such a way that only fingers handle the moving and adjustable screws
PRECAUTION:
- Measuring Force: Do not apply excessive force to the workpiece. The excessive measuring force will develop measurement error because of the positional deviations of the jaws.
- Positional Error: Measurement position of the large size vernier caliper should be consistent if the positional error is to be avoided. Measurements in a vertical position may be different from those in a horizontal position.
CAUTION:
- The outside and inside measuring jaws of this caliper have sharp edges. Handle it with great care to avoid injury.
- Do not measure the workpiece if it is rotating to avoid the risk of injury by being caught in the rotating machine.
