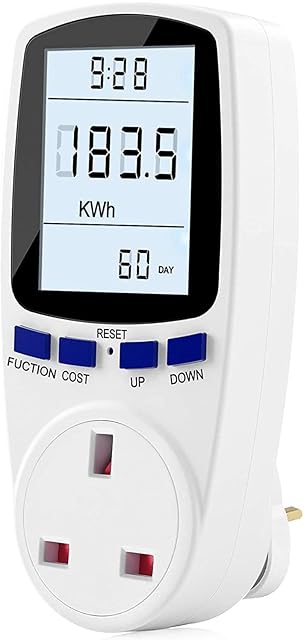

Gudniss Electricity Usage Monitor, Multifunction Power Meter Energy Monitor Analyzer UK Plug in Electricity Power Consumption Meter, Energy Monitor Watt Kwh Analyzer with LCD Display for Home Hotel by Amazon.co.uk

Description

Multifunction Power Meter Energy Monitor Analyzer UK Plug Electricity Power Consumption Meter Energy Monitor Watt Kwh Analyzer with LCD Display
With the help of power meter monitor, you can make certain how much your standby appliances cost, what the power factor is, whether the appliances are really charged, how long have your appliances been charged.
Help you save energy and money. It is a money saving helper for your family.
Electricity p-r-i-c-e Settings


1. Press and hold the COST button for 3 seconds to enter setting mode. (The "COST/kWh" in the lower right corner of the third line flashes)
2. Press the FUNCTION button to select the locations, and press UP/DOWN button to set the numbers.
3. Press COST button to save the p-r-i-c-e settings.



Multifunction Power Monitor Meter Analyzer
Muti-measurment Functions
Autmatic Data Storage Function
Money Saving Helper
Easy to Use
7 Modes on Display









7 Modes on Display
1. There are 7 display modes to show different data measured. Please press FUNCTION button to switch between different modes(from LCD DISPLAY to LCD DISPLAY).
2. The first line shows the cumulative time: The duration of how long the device is connected to the power. Within the first 60 minutes
: the time is showed as minutes and seconds, e.g. 12:06 means 12 minutes and 6 seconds;
Over 60 minutes
: the time is showed as hours and minutes, e.g. 12:06 means 12 hours and 6 minutes;
Over 24 hours(cycle repeated)
: the time is counted from 0:00 again, while 1 day is added on Display 2 (check the third line on Display 2).
Mode 1
: time/watt/ cost display
Mode 2
: time/cumulative electrical quantity/time day display
Mode 3
: time/voltage/frequency display
Mode 4
: time/current/power factor display
Mode 5
: time/minimum power display
Mode 6
: time/maximal power display
Mode 7
:time/overload/p-r-i-c-e display


Overload Settings


The default overload threshold is 3680W. To change it:
1. Press the FUNCTION button for more than 3 seconds to enter the setting mode. 2. Press the FUNCTION button to select the locations, and press UP/DOWN button to set the numbers. 3. Press the COST button to save the overload settings.
Overload Display


The default overload threshold is 3680W. Once the loading power is over 3680W, "OVERLOAD" will be displayed on the second line of the display. Please turn off the appliance for safety concern.
Memory Function


When power off, all setting data and cumulative data(Electricity quantity, cost, unit p-r-i-c-e, time) will be saved. The data will be displayed again when power on.(NOT including current, voltage, power, power factors)
Data Clear
(cumulative data only)

Press and hold the "FUNCTION
" button and "UP
" button at the same time to clear all cumulative data(kWh data, cost data and total time data), NOT including p-r-i-c-e and overload settings.
What to do if the power meter is blank or crashes?


Do NOT press RESET button. Unplug the power meter and plug again to reset it. After reset, all cumulative data is saved.



Autmatic Data Storage Function
Built-in battery to retain the memory setting and store electricity even in a power outage. Dont worry about data loss due to a sudden power outage.
Separate the power meter from the outlet to read the parameters carefully


The power meter is a monitoring and testing device for measuring power consumption of a connected appliance and the cost of the electricity consumed.
With the help of Power Meter Monitor, You can make certain how much your standby appliances cost, what the power factor is, whether the appliances are really charged, how long have your appliances been charged.
Help you save energy and money. It is a money saving helper for your family.
Muti-measurment Functions
This power energy meter can measure and display power (w), Energy (kWh), Current (A), Voltage (V), Frequency (Hz), Power Factor, Cost, Max Power, etc.
Energy monitor with many modes for your choice. Very suitable for monitoring of energy in the electrical appliances











Current Display (Amps): 0.000A~13.000A Frequency Display: 0Hz~9999Hz Pric Display Range: 0.00COST-99.99COST/KWH Total KWh and Cost Display: 0.0-9999KWh, 0.0-9999COST Power Consumption of the Power Meter Monitor: 0.5W Operating Voltage: 230VAC
Frequency Display: 50HZ Operating Current: Max 13A Wide Voltage Range: 230V-250V The Real Wattage display (Watts) is 0~2900W Timing Display Range: 0 second~9999 days


Easy to Use
Easily measure the power consumption and cost of your electrical appliance


Simply plug the meter into the wall and then plug your appliance into the meter
