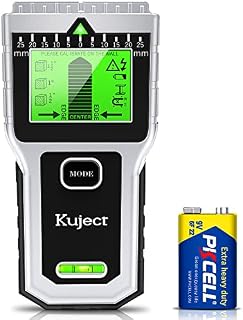

Kuject Stud Finder Wall Scanner - 8 in 1 Electronic Stud Sensor Beam Finders with Bubble Level, Nails Detector, Wall Detector for The Center and Edge of Wood AC Wire Metal Studs Joists by Amazon.co.uk
Description
8 in
1 Kuject stud finder
integrates 6 scanning modes and 2 auxiliary tools to help you say goodbye to crooked picture frames and unnecessary holes.
This stud finder detect density changes in spaces behind walls, quickly locates edges and center of studs, joists, beams, metals, pipes, live AC wire behind walls, floors and ceilings. Not applicable scan surface: ceramic surfaces, cement board walls and brick walls.
No longer make a difficult decision between magnetic stud finder or electronic stud finder.
Kuject stud finder is equipped with both modern electronic detection and traditional magnetic detection. The combination of the two modes can help you accurately detect studs.
REMINDER
If you accidentally shake or lift the tool during detection, you need to recalibrate the tool.
Stud Mode: If you are not sure about the thickness of the wall, please scan in 1/2" mode at first, then in 1" mode, and finally in 1½" mode. Stud mode is used to find and locate the center and edge of wood or metal studs up to 0.5/1/1.5 inches deep.
Metal Mode: Since the studfinder are looking for change in density behind drywall, not a particular material, in Stud mode the detector will react to metal studs the same as it would for wooden studs. After you find center of a object, please use Metal mode to determine if the previous reading in Stud mode was a wood stud, or metal stud/pipe.

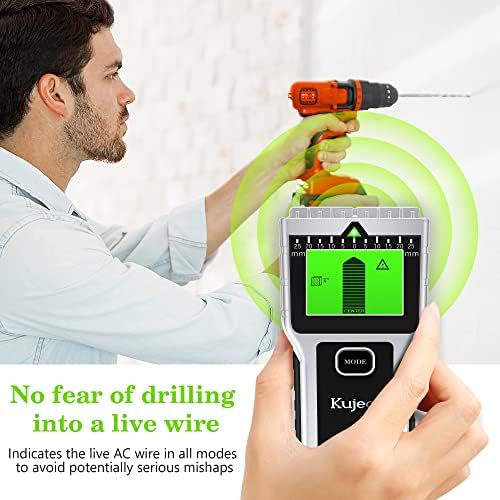

AC Mode: AC Wire detection indicates the presence of live, unshielded electrical wiring up to 2 inches deep. In all modes, this wall scanner always detect and indicate Live AC Wires. Tip: Cutting off the power to the house before detecting the AC line will make the detection more accurate
Magnetic Mode:: Magnetic mode can detect nails or screws up to 0.4 inches to locate studs. When you encounter inconsistent results when using stud mode, the wall situation may be a bit complicated. Since metals tend not to be on such shallow surfaces, use the magnetic mode to double check.
Please move horizontally if the stud is vertical
How to use:
Step 1: Choose the Mode
Long Press Mode Button to turn on the tool, short press Mode Button to switch to the desired mode.
Step 2: Calibrate the tool before every scan
Hold the scan button (on the side of the tool) to calibrate. Wait for the reducing bars disappeared and beep to confirm calibration has completed.
Note: In stud mode, put it on the wall where you want to detect to calibrate it; In AC/Metal mode, put it in the air to calibrate it;
Step 3: Scan on the Wall
After finishing calibration, please release the calibration button. Then move the tool along the wall slowly, if you shake or lift the tool accidentally, the tool needs to be re-calibrated.
Note: When the signal bar changes, meaning the density behind the wall has changed, studs may be nearby.
Step 4: Find the location of the stud
When the signal bar is full and the beep alarm is loudest, it means you have found the center of an object. Mark it with your pencil.
Then switch to Metal mode to test whether it is a metal. After you confirm that it is not a metal, it means that you found the center of a stud. Then you can drill it to hang the thing.
Product information
- Manufacturer:Suzhou TongXinWei electronics Technology Co.,Ltd
- Part Number:T30
- Package Dimensions:18.5 x 9.9 x 3.6 cm; 197 Grams
- Item model number:T30
- Colour:Silver
- Style:8 in 1
- Batteries included?:Yes
- Batteries Required?:Yes
- Battery Cell Type:Zinc Carbon
- Item Weight:197 g
