Cooler Master Hyper TX3 EVO CPU Cooling System - Compact and Efficient, 3 Direct Contact Heat Pipes, 92mm PWM Fan by Amazon.co.uk

Price last update: 07/03/2025
  • COMPACT CPU COOLER - At just 136mm in height, the Hyper TX3 EVO is both a reliable and affordable solution for computer cases limited CPU clearance
  • DIRECT COOLING WITH GROOVED FINS - The primary heat exchanger features 3 embedded copper heat pipes (Ø6mm) in flat array and includes additional aluminium fins upon the plate to further augment thermal conductivity
  • ALUMINIUM FIN HEAT SINK - Optimised to perform at high and low fan speeds (800 - 2200 RPM)
  • 92MM PMW FAN - A Long Life Sleeve Bearing and anti-vibration rubber pads ensure quiet (17 - 30 dBA) yet robust airflow (0.35 - 2.63 mmH2O, 15.7 - 43.1 CFM). Quick-snap brackets can be easily configured into a dual push-pull system with a secondary fan (not included)

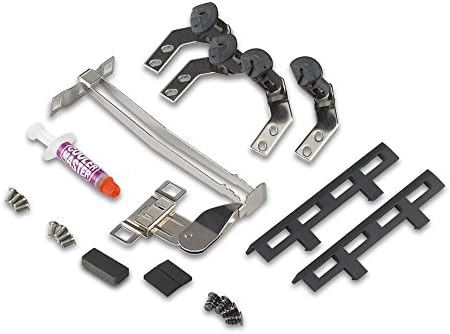

  • AMD & INTEL COMPATIBLE - Includes versatile all-in-one mounting brackets that support Intel (LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and LGA775) and AMD (AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1) sockets

    Description

    Building a PC is a highly personalized journey. We know that components are carefully chosen based on performance, functionality, and aesthetic preference. Your personality is embedded in each of those choices, transcending from hardware to an immersive, custom-built experience. From custom PCs to all-out gaming rooms, we encourage every decision to reflect who you are.


    Cooler Master Hyper TX3 EVO / TX3i
    Compact | Versatile | Powerful
    Cooler Master Hyper TX3 EVO & TX3i CPU coolers delivers compact cooling and features Cooler Master’s Direct Contact technology, further improving thermal transfer rates.
    TX3i
    - Intel socket compatible only
    TX3 EVO
    - AMD & Intel socket compatible
    3 Direct contact copper heat pipes


    92mm PWM fan with anti-vibration pads & quick-snap bracket


    Dual-fan ready (secondary fan not included)


    Compact aluminium heatsink (90 x 51 x 136 mm)


    Thermal paste included






















    3 DIRECT CONTACT HEAT PIPES
    Aluminum fins with 3 direct contact heat pipes provide excellent heat dissipation.

    DUAL FAN DESIGN
    Increase cooling performance by adding an optional second 92mm fan*.
    *Secondary 92mm fan not included


    COMPACT DIMENSIONS
    Excellent airflow design with compact heat sink dimension.









    Intel CPU Sockets
    LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA775
    AMD CPU Sockets (TX3 EVO only)
    AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
    Heat Sink Material
    Continuous Direct Contact Heat Pipes, Aluminum Fins
    Heat Sink Weight
    306 g 90 x 51 x 136 mm
    Heat Sink Dimensions
    90 x 51 x 136 mm
    Heat Pipe Dimensions
    Ø6 mm

    Fan Bearing Type
    Long Life Sleeve Bearing
    Fan MTTF
    40,000 Hours
    Fan Speed
    800 - 2,200 RPM (PWM) ± 10%
    Fan Airflow
    15.7 - 43.1 CFM ± 10%
    Fan Air Pressure
    0.35 - 2.63 mmH2O ± 10%
    Fan Noise Level
    17 - 30 dBA




    Size
    Compact
    Compact
    Standard
    Heatsink Dimensions
    90 x 51 x 136 mm
    90 x 63.5 x 136 mm
    120 x 80 x 155 mm
    Heat Exchanger
    Direct Contact
    Direct Contact
    Direct Contact
    Heatpipes
    3 x Ø6 mm
    4 x Ø6 mm
    4 x Ø6 mm
    Fan Dimensions
    92 x 92 x 25mm
    92 x 92 x 25mm
    120 x 120 x 25 mm
    Noise
    17 ~ 30 dBA
    29.4 dBA (Max.)
    8 ~ 27 dBA
    RPM
    800 ~ 2200 RPM
    600 ~ 2000 RPM
    650 ~ 1800 RPM
    Airflow
    43.1 CFM
    34.1 CFM
    62 CFM

    Product information

      • Item dimensions L x W x H:8.9 x 7.9 x 13.5 centimetres
      • Brand:Cooler Master
      • Power connector type:3-Pin
      • Voltage:12 Volts
      • Wattage:2.88 watts
      • Cooling method:Air
      • Compatible devices:CPU Sockets: LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
      • Noise level:17 dB
      • Material:Aluminium, Copper, Rubber
      • Maximum rotational speed:2200 RPM
      • Product Dimensions:8.89 x 7.87 x 13.46 cm; 299.99 Grams
      • Batteries:1 Lithium Ion batteries required.
      • Item model number:126799
      • Manufacturer:Cooler Master Europe B.V.
      • Series:TX3
      • Color:Hyper TX3 Evo
      • Standing screen display size:3 Inches
      • Processor Count:1
      • Computer Memory Type:DDR3 SDRAM
      • Memory Clock Speed:1800
      • Are Batteries Included:No
      • Lithium Battery Energy Content:2 Milliampere Hour (mAh)
      • Lithium Battery Packaging:Batteries packed with equipment
      • Lithium Battery Weight:2 Grams
      • Number Of Lithium Ion Cells:5
      • Number of Lithium Metal Cells:5
      • Item Weight:299 g
