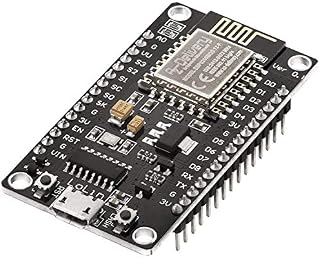

AZDelivery NodeMCU WiFi Lolin V3 ESP8266 ESP-12F Internet Development Board Module (32mbit) Flash Memory Chip Series Port Adapter with CH340 compatible with Arduino Including E-Book! by Amazon.co.uk
- • ✅ Nodemcu Lolin V3 ESP8266 development board is equipped with the powerful ESP8266 microcontroller (ESP-12F) with 802.11 b / g / n WLAN and integrated 20dBm antenna. This development board consists of: flash memory chip is 25Q32 4M (32mbit) and serial chip is upgraded CH340 chip.
- • ✅ Compatibility: This WiFi development board enables you comfortable prototyping by simple programming via Lua-Script and breadboard-optimised construction (27.5 mm pin spacing).
- • ✅ Compact and Versatile: the board can be used for temperature and humidity monitors in home automation projects. Its dimensions (L 58 mm x W 31 mm x H 13 mm) make it a perfectly designed compact board.
- • ✅ Top performance: powerful on-board storage and processing capabilities that allows it to be integrated with application-specific sensors and devices that require minimum load during run time. Power your development in the fastest way combinating with NodeMCU Firmware!
- • ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.
Description
is another classic among ESP development boards.
Equipped with a powerful ESP8266-12F
processor from Espressif and integrated WLAN, this controller offers an easy entry into IoT development.
Due to the wide distribution and the large community, many application examples are available.
This board is programmable via the Espressif SDK in LUA.
There are different firmware versions of the manufacturer available which can be flashed comfortably over the Micro-USB port.
In contrast to the previous model, it uses the CH340 serial chip
which makes an application particularly user-friendly, and has more stable performance and powerful compatibility. This ESP8266 microcontroller also consists of a 25Q32 4M (32mbit)
flash memory chip.
Thanks to the generous memory and power reserve of the ESP processor, this board scores where the performance range of various ends!
✔\ufe0f NodeMCU V3 Lolin Module
✔\ufe0f 3.3V voltage regulator, the module can connect to your router and other network infrastructure in your property
✔\ufe0f PWM/I2C/SPI/UART
✔\ufe0f Easy to program; built-in Micro USB with flash and reset switches
✔\ufe0f Wake up and transmit packets in <2ms
✔\ufe0f Standby power consumption of <1.0mW (DTIM3)
✔\ufe0f Onboard PCB antenna, supports antenna diversity. +20dBm output power in 802.11b mode
✔\ufe0f Integrated PLL, regulators, and power management units
✔\ufe0f Integrated TR switch, balun, LNA, power amplifier and matching network
WiFi Protocols
802.11b/g/n
Frequency Range
2.4GHz-2.5GHz (2400M-2483.5M)
Operating Temperature Range
-40C - 125C
Operating Voltage
3.0 - 3.6V
Operating Current
Average value: 80mA
WiFi Mode
station/softAP/softAP+station
Security
WPA/WPA2
Encryption
WEP/TKIP/AES
Network Protocols
IPv4, TCP/UDP/HTTP/FTP
User Configuration
AT Instruction Set, Cloud Server, Android/iOs
For top quality Raspberry Pi products, AZ-Delivery Vertriebs is your go to.
We provide an array of application examples, full installation guides, eBooks, libraries, and all round assistance.
AZ-Delivery, your microelectronics expert.
Product information
- Brand:AZDelivery
- CPU model:Mobile CPU
- Connectivity technology:Wi-Fi, WLAN
- Operating system:Linux
- Wireless communication standard:802.11b
- Manufacturer:AZDelivery
- Part number:1x NodeMCU Lolin V3
- Item Weight:20 g
- Package Dimensions:10.1 x 6 x 1.9 cm; 20 Grams
- Item model number:1x NodeMCU Lolin V3
- Size:1x NodeMCU Lolin V3
- Item Package Quantity:1
- Batteries included?:No
- Batteries Required?:No
