Stud Finder Sensor Wall Scanner - 5 in 1 Electronic Stud Sensor Locator Wall Wood Beam Joist Finders Wall Detector Edge Center Finding with LCD Display for Wood Live AC Wire Metal Studs Detection by Amazon.co.uk
Description
Tavool Stud Finder adopt the upgrade sensors with Great Accuracy. Tavool stud finder is the best choice for locating the studs/metal/ac wires preciously and quickly!
Tavool stud finder works by detecting density changes in a wall.
Tavool wood stud finder adopts the UPGRADE SENSORS to get the greatest accuracy. Moreover, Tavool wall scanner can also help you avoid drilling or hammering into a water pipe or electrical wire
Before there were stud finders, people have 2 methods to find the stud : 1. Pounded a small nail into the wall until you hit a stud; 2. Use a small pivoting magnet. However, the first one damages the wall and the second magnet technique is slow.
Stud Scan Detection
This stud locator has 3 stud scn modes. Deep Scan Mode scans through 2 layers of drywall up to 1.5 in. (38 mm) deep. DeepScan Mode is a higher sensitivity scanning mode that should be used when there are extra layers of wallboard or paneling. To minimize false positives and/or finding other objects further behind the wall that may not be a stud, always start your scan in StudScan Mode first.
Question: How can I be certain the objects found behind my wall are studs in DeepScan Mode
Metal Scan Detection
Tavool wall canner will locate metal studs in StudScan, DeepScan, and Metal Scan Modes. Since Tavool stud finders are looking for a change in density behind drywall, not a particular material, in StudScan and DeepScan Modes the detector will react to metal studs the same as it would for wooden studs.
After you detect the center of a object, Please Use Metal Scan to determine if the previous reading in Stud scan was a wood stud, metal stud, or pipe.
Wire Warning Detection

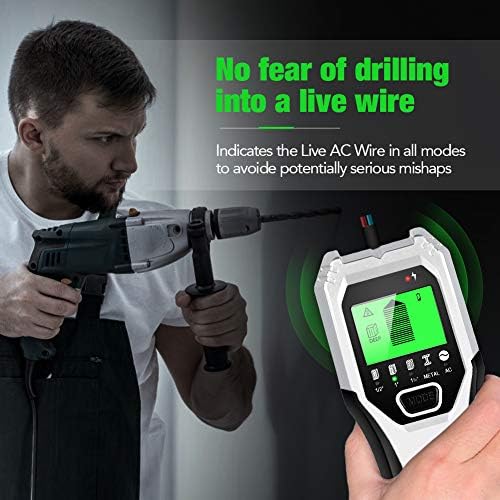

Wire Warning detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep. For Safety, in all modes, this wall scanner always detect and indicate the Live AC Wire.
Note: WireWarning Detection works in both StudScan / DeepScan / MetalScan Modes. The WireWarning Detection Icon will flash when live, unshielded wires are detected.
The Electronic stud finders changed all that.
Tavool Electronic stud finders gives you an amazingly accurate view into the wall and show you exactly where each stud is. Follows are the advantages of Tavool TH510 stud finder over the normal stud finders in the market: 1.Great accuracy/reliability/consistency 2.Identifies the width of stud as well as the location 3.Easy to read screen and the quick identifiers when you hit a stud 4.Increases the sensitivity to more than 2 inches 5.Upgrade model with 5 scanning modes to meet different needs
Tavool stud finder is perfect for normal scanning of drywalls and finding joists, beams, and studs in almost all types of stud walls, for example, finding studs on drywalls, plaster wall, finding the beams in the ceiling, floor, locating metal behind walls or other surfaces, even locating metal/screws behind tiles.
Give it a try and you will get your homework more easier!
Note:
1. This stud finder can quickly locate metal, studs, joists, pipes, live AC wire behind all kinds of walls floors and ceilings but except the cement board wall and brick wall
, you can use it on popcorn ceilings, plaster walls, textured surfaces, drywall, etc.
2. Please note: The 9v battery is not included in the package
Step 1:Calibrate the tool before every scan
After choose the mode, press and hold the scan button( on the side of the tool) to calibrate this tool. Wait for the reducing bars disappeared and beep to confirm calibration has completed.
In stud/deep mode, put it on the wall where you want to detect to calibrate it ;In AC/Metal mode, put it in the air to calibrate it.
Step 2: Scan the wall
Hold down the button, then move the stud finder along the wall slowly, if shake or lift the scanner accidently, the device needs to be re-calibrate.
The narrow on the screen togather with the beep signal alter, guides you to find the location of the stud.
Step 3: Find the location of the stud
When the signal bar is full and the beep alarm is loudest, it means you have found the center of an object.Mark it with your pencil.
Then choose the Metal Scan mode to test whether it is a metal.
After you confirm that it is not a metal, it means that you found the center of a stud. (More details refer to the above description of "Metal Scan Detection")
Then you can drill it to hang thing
Product information
- Manufacturer:Tavool Tavoolloo
- Part Number:SF-SILVER-DE
- Product Dimensions:18.54 x 7.87 x 3.68 cm; 260 Grams
- Batteries:1 9V batteries required. (included)
- Item model number:SF-SILVER-DE
- Colour:Silver
- Item Package Quantity:1
- Special Features:1.The stud finder provides 5 scanning modes,including Stud Scan, Deep Mode, Metal Scan and AC Scan. 2. The stud finder offers many visible and audible cues with its LCD Display and Beep Signal Alert 3. the stud finder calibrate itself when it is turned on, fast and simple detection.
- Usage:The stud finder wall scanner can QUICKLY LOCATE the edges and center of metal studs,wooden stud, pipes, rebar, joists behind walls, floors and ceilings, drywall, plaster wall,wallboard or plaster etc.
- Batteries included?:Yes
- Batteries Required?:Yes
- Battery Cell Type:Alkaline
- Item Weight:260 g
