7E TRADING 24 Port 1U Rack Mountable CAT6 Patch Panel Pro RJ45 110 Network Mini Patch Pane Integrated Molding/No Rust/Durable by Amazon.co.uk
Description
1. The use of thick steel plate material manufacturing, integrated molding, no rust, durable, able to cope with the complex and ever-changing environment.
2. Behind the patch panel comes with metal cable ring, easy cable fixing, cabinet maintenance, so that more neat and easy to distinguish between the wire, and beautiful and clean.
3. Distribution frame is equipped with detachable labels, design more humane, easy to install and cable distinction.
4. Front eight-pin core with 50μm gold-plated contacts, with anti-oxidation properties and sensitive contact performance, to ensure data stability and high-speed transmission.
5. High-strength polycarbonate post, providing up to 250 termination, Phosphor bronze wire clip, to ensure that the cable easily broken, improve contact performance.
Assembly 24 Cat6 Patch Panel with Punch Down Tool in Right Way.
Network patch panel cat 6 is extremely easy and straight forward to install and use.
Depatch each corlor wire and put into IDC hole according to 568B color labling on patch panel ethernet.
Punching down all wires into the hold of IDC connection with a punch down tool.
Tie up cables with plastic cable ties included to make them stable connectivity. This step is important.
Screw the 1u patch panel bracket on to racks with mounting bolts and nuts included.
Applications: Suitable for 19-inch standard cabinets, 1U rack space.
Features:
Name: six categories of unshielded 24 interface patch panel
Specifications: 1U rack-style
Plug:> 750 times Termination:> 250 times
Core: 50μm gold-plated
Configuration: metal cable ring
Height: 44.5mm
Length: 483mm
Horizontal hole spacing 465mm
Important:
Distribution frame is equipped with detachable labels, design more humane, easy to install and cable distinction.
Behind the patch panel comes with metal cable ring, easy cable fixing, cabinet maintenance, so that more neat and easy to distinguish between the wire, and beautiful and clean.
Note:
With zip ties, it can effectively reduce the deformation of the ethernet cable, improve the working stability of the network connection port, and avoid the occurrence of network failures caused by the loosening and deformation of the cable.
Package Contents:
1* patch panel
4* set of screws
4* cable ties
1* Punch Down Tool
Strong and Durable
1. Wall mount cat6 patch panel made of thick steel.
2. Lable space of 24 port ethernet patch panel for hand writing.
Cable tie
1. Cable ties of punchdown patch panel is to reduce the deformation of the ethernet cable.
2. 4pcs Screws included to fasten punch panel onto racks.
1u & 19inch
1. Put the whole rj45 patch onto standard 19 inch wall mount and fasten the screw included.
2. 24port network rack patch panel is 1u in height.
High Performance

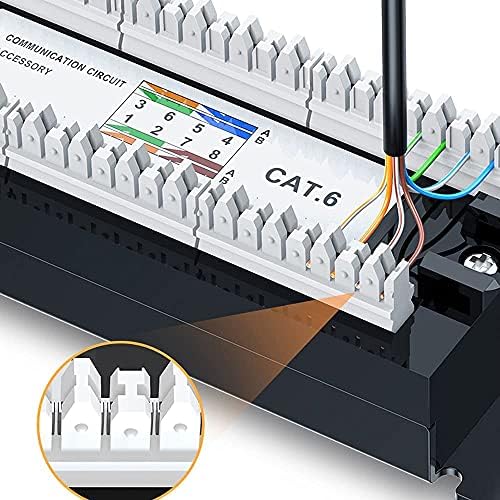

1. IDC Termination of network patch panel cat 6.
2. 568B labling of patch panel cat6 24 port.
Product information
- Brand:7E TRADING
- Connector type:RJ45
- Cable type:Ethernet
- Colour:Gold,Bronze
- Shape:Round
- Manufacturer:7E TRADING
- Part number:7e00039
- Item Weight:720 g
- Package Dimensions:52 x 10 x 6.5 cm; 720 Grams
- Manufacturer reference:7e00039
- Material:Metal
- Plug profile:Rack Mount
- Batteries included?:No
- Batteries Required?:No
