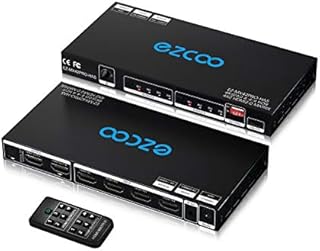

HDMI Matrix 4 in 2 Out 4K 60Hz 4:4:4 HDR D-o-l-b-y Vision Atmos SPDIF 5.1CH Breakout 3.5mm Stereo HDCP2.2- PC Console 16 EDID HDMI Scaler 4K 1080P Sync, HDCP2.2 HDMI2.0 Matrix 4x2 IR Remote,MX42PRO by Amazon.co.uk
- • 4x2 HDMI Matrix 4K HDR with SPDIF TOSLINK---4K HDMI Matrix 4x2 is designed to switch between four HDMI sources to two displays. It is able to distribute any source to any display. The two output signals can be different or the same. Two output play 4K and 1080P Simultaneously, with Extra SPDIF Optical 5.1CH Audio.---pls ensure HDMI Source, TV, Receiver/Soundbar support them both. For set up way,pls check DESCRIPTION. ---Support 4K HDMI down-scale to 1080P.
- • KEY USAGE --- 1. Connect 1080p HDMI display to matrix OUT 1(A), connect 4K display to matrix OUT 2(B), matrix EDID copy OUT 2(B) prior. 2. HDMI OUT 1(A) Down-scale 4K to 1080p only, NOT down-scale 4K HDR D-o-l-b-y Vision (4K60Hz 4:2:2) ---Suggest less than 15mtr qualified HDMI 2.0 cable. --- IR remote and panel control. -NOT extend screen, only COPY.
- • AUDIO VIDEO --- 4 input to 2 output HDMI Matrix Switch supports HDCP2.2 HDMI2.0 4K 60Hz 4:4:4 18Gbps 8bit HDR D-o-l-b-y Vision. VRR.HDMI audio supports D-o-l-b-y Digital 7.1CH, D-o-l-b-y Atmos,DTS:X. De-embed SPDIF Optical 5.1CH follows up HDMI OUT 2(B), no need TV connection. NO CEC.NO Extender
- • ATTENTION PLS --- Pls read EDID DIP Switch picture carefully, it's a simple device, just needs to be hooked up correctly. --- Based on Return Research, the most of buyers who returned it, due to wrong operation or don` t use HDMI 2.0 standard cable. Pls read Bullet Points, Description, Installation Instruction (set EDID/ upgrade firmware) on product page carefully.
- • HIGH COMPATIBILITY --- HDMI four input two output switcher matrix supports HDMI 2.0 HDCP 2.2 devices, Elgato 4K60 MK 2,G-Sync,Nvidia Shield,Xfinity box, Game Video Capture,Apple TV,Amazon Fire TV,PS4 Pro,X BoX series,Comcast,OSSC etc. --- Plug and Play; 1~3 sec Fast Input Switching. No signal delay/ lag. For competitive KVM HDMI Switch, check asin B082D7YJH6
Description
This product is a component, not a complete computer system, and should be connected to a compatible KVM Switch or PC for use. It is important to ensure that all components are properly connected and that the source device being used supports the matrix\'s features. The HDMI matrix can support a wide range of devices, including gaming consoles, cable boxes, streaming devices, and more. It is also compatible with a variety of audio and video formats, including 4K60Hz 4:2:2, VRR, and HDR D-o-l-b-y Vision.
The matrix is designed to be easy to use, with a simple installation process that requires only the connection of the devices to the matrix\'s HDMI inputs and outputs. It also includes an EDID DIP Switch for easy customization and Firmware upgrade. The matrix is less than 15 meters qualified HDMI 2.0 cable, and it supports both HDCP2.2 and HDMI2.0 standards. It also includes a remote control and panel control for easy operation.
The audio video features of the matrix include 4 input to 2 output HDMI Matrix Switch supports HDCP2.2 HDMI2.0 4K 60Hz 4:4:4 18Gbps 8bit HDR D-o-l-b-y Vision. VRR.HDMI audio supports D-o-l-b-y Digital 7.1CH, D-o-l-b-y Atmos,DTS:X. De-embed SPDIF Optical 5.1CH follows up HDMI OUT 2(B), no need TV connection. NO CEC.NO Extender.
This matrix is designed to be compatible with a wide range of devices and is highly compatible with a variety of audio and video formats, including 4K60Hz 4:2:2, VRR, and HDR D-o-l-b-y Vision. It also supports HDCP 2.2 and HDMI2.0 standards, as well as a variety of audio formats, including D-ol-b-y Digital 7.1CH, D-ol-b-y Atmos, and DTS:X.
The matrix can support devices such as Elgato 4K60 MK 2,G-Sync,Nvidia Shield,Xfinity box, Game Video Capture,Apple TV,Amazon Fire TV,PS4 Pro,X BoX series,Comcast,OSSC etc. It is also plug and play, with a 1-3 second fast input switching time. The matrix does not support any signal delay or lag.
This matrix can be used to upgrade the firmware, which can be done by following the instructions provided on the product page. It is important to ensure that the HDMI source device being used supports all of the matrix\'s features before using it. This matrix can also be used with a variety of other devices, including computers and other KVM Switches.
Product information
- Colour:White
- Connector type:HDMI
- Brand:ROFAVEZCO
- Compatible devices:PC
- Cable type:HDMI
