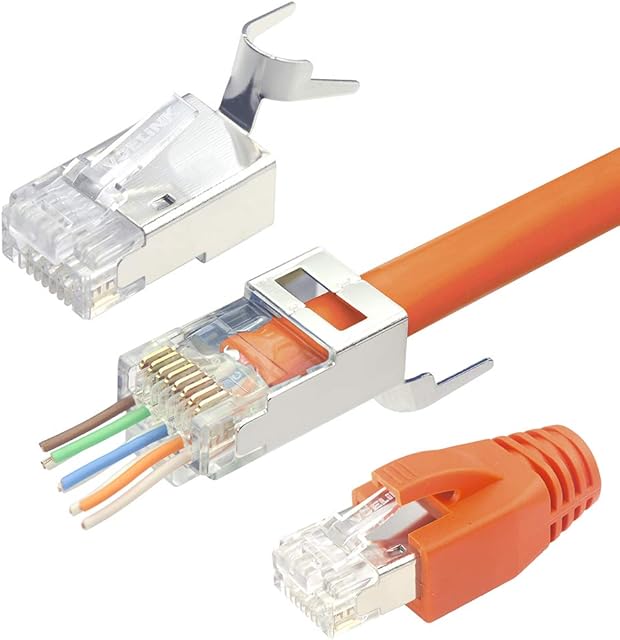

U/D 30 Pack RJ45 Connector Shielded Cat 7 Network Connector Ethernet Connector Modular Plug with Load Bar and RJ45 Boots Insulation Diameter 1.25-1.35mm (Orange) by Amazon.co.uk
Currently Unavailable
- • Line Support 1.5mm,Insulation Diameter 1.25-1.35mm
- • Packing: 30x Shielded RJ45 connectors with Load Bar,30x RJ45 Boots
Description
Features
Copper Alloy Shielding 3\xb5\u201d Gold Plated Contacts Works On Stranded Or Solid Conductors Fits 23 AWG - 26 AWG Wires(1.25~1.35 mm OD) Fits Cables With A Jacket OD Of 5.8~ 7.0 mm OD Transparent Housing For Easy Conductor Alignment 8 Pins x 8 Conductors
Electrical Specifications
Insulation Resistance: 100 M Ω UL Applications: 250 Volts AC Max., at 2 AMPS Dielectric With Standing Voltage: 500 Volts AC Termination: Resistance 20m Ω Max After Environmental Testing
Mechanical Specifications
Durability: 200 Matting Cycles Cable-To-Plug Tensile Strength: 20 Pound Min.
Physical Characteristics
Housing: Polycarbonate, UL94V-0 Color: Transparent Contact Blade: Copper Alloy Conductor: Stranded & Solid Wire, 23 - 26 AWG (Plug Can Be Used For Wire OD’s Of Under 1.35 mm & Cable Out Jacket OD Should Be Under 7.0 mm) Gold Plating: 3\xb5\u201d Shielded Shell: Copper Alloy
Product information
- Brand:U/D
- Connector type:RJ45
- Cable type:Ethernet
- Compatible devices:Router
- Ethernet cable category:Cat 6a
- Manufacturer:Liangzhi Laohu
- Part number:SJT
- Item Weight:172 g
- Package Dimensions:16.1 x 12.2 x 2.9 cm; 172 Grams
- Manufacturer reference:SJT
- Colour:Orange
- Specification met:UL
- Batteries included?:No
- Batteries Required?:No
