SDI to USB Capture Card Video Converter Adapter 1080P SDI Input to USB 3.0 Output for Live Streaming Mini Converter SDI Compatible Video and Audio to Computers Plug and Play by Amazon.co.uk
Description
1080P Video Capture Card USB 3.0 USB2.0 SDI-compatible video Recorder Camera Recording Live Streaming
The SDI video capture can capture both SDI-compatible video and audio, sending audio and video signals to computers and push tp online live broadcast platforms. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
SDI to USB video capture
SDI to USB video capture
SDI to USB video capture
* SDI to USB video capture Support input :SDI ; SDI to USB video capture output interface : USB3.0
* SDI to USB video capture Support output max resolution 1920x1080P,1600*1200P,1360*768P,1280*1024P,1280*960, 1280*720P, 1024*768P,800*600P,720*480P, 720*576P, 640*480P; * Support Frame rate;5-60FPS select
* SDI to USB video capture Support audio and video capture : standard UVC/UAC,
* SDI to USB video capture Drive : NO need to install the driver , plug and play ;
* SDI to USB video capture Support Windows and Linux, android operating system ;
* SDI to USB video capture Conform to USB Video and UVC standard;
* SDI to USB video capture Conform to USB Audio UAC standard; * Without external power supply, compact and portable. ' allowed for capture, commonly used acquisition software : OBS/potplayer(windows )
SDI to USB Capture
SDI to USB Capture

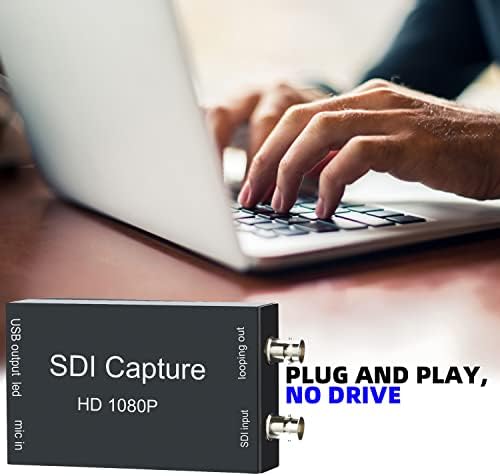

SDI to USB Capture INTRODUCTION: SDI Capture is an audio and video capture device that supports SDI signal input and USB interface output to the computer. It is a cost- effective audio and video capture card that complies with UVC/UAC specifications. The transmission interface is USB3.0. This machine is compatible It is a plug-and-play, USB drive-free high-definition video capture tool for Windows, Linux, and Android.
SDI Capture converts
SDI Capture converts
SDI to USB video capture FUNCTIONAL: SDI Capture converts SDI signals such as computers, embedded systems, medical equipment, scientific or laboratory equipment into USB signals, and completes the collection and recording of SDI signal video through computers, notebooks and other equipment. It also supports lossless loop out and sup ports Microphone synchronized audio input. Products are commonly used in the field of security, medical equipment video capture, corporate video conferencing, education, and are compatible with OBS, POTPLAYER, AMCAP, VLC and other capture software.
Video Capture Card SDi to USB
SDI to USB video capture Video Capture Card INSTRUCTIONS FOR USE. .
1. Connect the signal source to the sdi input interface of the capture card, if you need the loop out function, you can connect to the looping out interface
2. The USB output of the capture card is connected to the computer through a USB cable, or an OTG converter is added to the mobile phone (drive-free)
3. For audio input, connect the audio signal to the mic in interface
4. Open the acquisition software on the acquisition computer, select the device AFN_ Cap video and activate it. At this time, the red LED light flashes, indicatin that the signal acquisition is successful.
Product information
- Compatible devices:Cellular Phones
- Connector type:usb
- Brand:POMIACAM
- Number of ports:1
- Warranty type:Limited
