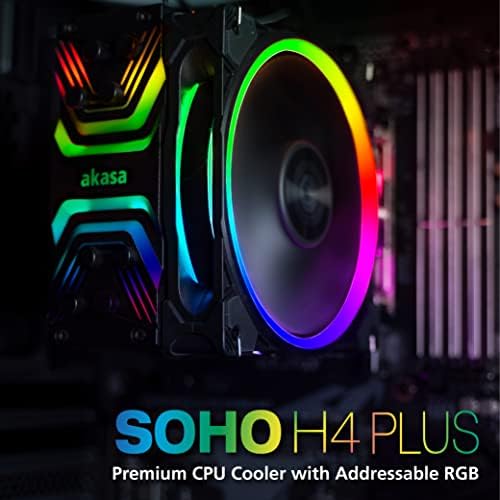

Akasa SOHO H4 Plus, Addressable RGB CPU Cooler, TDP185W, Supports Intel LGA 1700/115x/1200/20XX and AMD AM4 AM5 Ryzen, 120mm PWM Fan, Copper Heatpipes, Includes Thermal Paste, AK-CC4022HP01 by Amazon.co.uk
- • [ H4 PLUS Version with Better Compatibility ] - Increased contact surface area allows for more heat to be dissipated at a time. Suitable for Intel LGA 1700/20XX/115X/1200 and AMD AM4/AM5 sockets.
- • [ Over 16 Million Colour Combinations ] - Maximise your aesthetic with a multitude of visual possibilities with aRGB. Compatible with Gigabyte, Asus, Razer, MSI and ASRock lighting software.
- • [ Extreme CPU Cooling ] - Premium CPU cooler with 120mm fan featuring full Addressable RGB, PWM function and efficient copper pipes. Designed for CPUs with a maximum TDP of 185W.
- • [ Memory Compatibility ] - Slanted heatsink designs for RAM compatibility including mini-ITX motherboards.
- • [ Included Ultra-Performance Thermal Paste ] - Akasa T5 Pro-Grade Plus is included with hybrid silicone and nano-diamond particles for the ultimate thermal conductivity between CPU and air cooler.
Description
Increased contact surface area allows for more heat to be dissipated at a time.
Mounting kit offers easy and secure installation for a wide range of Intel and AMD motherboards. Compatible with Intel LGA 2066/2011/1700/1156/1155/1151/1150/1200 and AMD AM4 AM5 socket.
Over 16 Million aRGB Lighting Combinations
Experience a variety of visual possibilities with over 16.8 million colour combinations for total customisable lighting.
RAM compatibility
Slanted heatsink designs for RAM compatibility including mini-ITX motherboards.
5V Motherboard Sync
Motherboard sync certified by popular RGB software including Asus, ASRock, Gigabyte RGB Fusion, MSI and Razer Chroma.
Premium Radiator Fan
120mm PWM fan with addressable RGB LEDs, Hydro Dynamic bearing and anti-vibration damping pads that reduces fan noise and increases fan life up to 40,000 hours. ( Product Code: AK-FN108 )
Sleek Black Fins
High density design for maximum thermal distribution to ensure CPU has superb cooling. Electro-painted in black for corrosion resistance and sleek aesthetics.
Unique top cover design helps give a distinct look to your desktop.
Efficient Copper Pipes
Highly conductive with Direct Contact Technology that maximises efficient heat transfer from the CPU to the fins.
Included CPU Thermal Paste
Ultra-performance thermal compound for your CPU or GPU for superior heat transmission to the heatsink. Composed of hybrid silicone and nano-diamond particles for exceptional thermal conductivity. ( Product Code: AK-T565-5G )
SPECIFICATION
Socket Type
Intel LGA1700, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066 ,LGA2011 and AMD AM4 AM5
Cooler Dimension
153.6 x 120 x 92 mm (Fan: 120 x 120 x 25 mm)
Heatsink Material
Aluminium fins with copper heatpipes
Weight
703.9g
Fan Dminesions
120 x 120 x 25 mm
Fan Speed
500 - 2000 RPM
Max Airflow
52.91 CFM
Max Air Pressure
1.75 mm-H20
Max Noise Level
31.8 dB(A)
Current Rating for Fan
0.13A
Voltage Rating for Fan
12V DC
Bearing Type
HD Bearing (Hydro Dynamic Bearing)
Fan Life Expectancy
40,000 hours
Connector
Fan: 4-pin PWM / Lighting: 3-Pin Addressable RGB
Compatible RGB Software
Gigabyte RGB Fusion, MSI Mystic Light, ASUS AURA, ASRock Polychrome, Razer Chroma RGB
Product Code
AK-CC4022HP01
Application
PC case, radiator, heatsink fan
PC case, radiator, heatsink fan
PC case, radiator, heatsink fan
PC case, radiator, heatsink fan
CPU Cooler
CPU Cooler
Socket Type
/
/
/
/
LGA2066, LGA2011, LGA1156, LGA1155, LGA1151, LGA1150, LGA1200 and AM4
LGA1700, LGA2066, LGA2011, LGA1156, LGA1155, LGA1151, LGA1150, LGA1200 and AM4 AM5
Fan
SOHO AR14*1
SOHO AR Dusk Edition(Black)
SOHO AR Dawn Edition (White)
SOHO AR Dusk Edition(Black)*3
SOHO AR Dusk Edition(Black)*1
SOHO AR Dusk Edition(Black)*1
Heatsink
/
/
/
/
Aluminium fins with copper heatpipes
Aluminium fins with copper heatpipes
Dimension
140 x 140 x 25 mm
120 x 120 x 25 mm
120 x 120 x 25 mm
120 x 120 x 25 mm
157 x 120 x 96 (mm)
153.6 x 120 x 92 (mm)
Product Code
AK-FN119
AK-FN108
AK-FN108-WH
AK-FN108-KT03
AK-CC4018EP01
AK-CC4022HP01
Product information
- Brand:Akasa
- Power connector type:4-Pin
- Voltage:12 Volts (DC)
- Wattage:185 watts
- Cooling method:Air
- Compatible devices:Desktop
- Noise level:31.8 dB
- Material:Copper
- Maximum rotational speed:2000 RPM
- Manufacturer:AKASA
- Part number:AK-CC4022HP01
- Item Weight:1.03 kg
- Package Dimensions:18 x 15.9 x 11.7 cm; 1.03 Kilograms
- Item model number:AK-CC4022HP01
- Style:Akasa SOHO H4 Plus (LGA1700 Edition)
- Item Package Quantity:1
- Noise Level:31.8 dB
- Included components:Mounting Kit, Thermal Paste
- Batteries included?:No
- Batteries Required?:No
