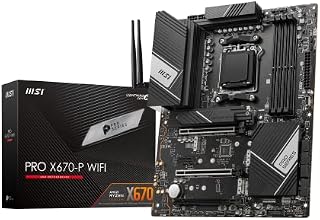

PRO X670-P WIFI by Amazon.co.uk

Price last update: 12/06/2025

• DEPENDABLE VRM, Ryzen 7000 READY - The PRO X670-P WIFI employs a 14+2 Duet Rail VRM with 80A SPS for the AMD X670 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports demanding multi-core processors
• COOL & EFFICIENT - Frozr AI Cooling adjusts fan speeds based on system temperatures; Passive cooling includes 7W/mK MOSFET thermal pads, an extended heatsink design, double-sided M.2 Shield Frozr & an 8-layer server-grade PCB
• DDR5 MEMORY, 3 x PCI-E 4.0 x16 SLOTS- 4 x DDR5 DIMM SMT slots enable high-speed memory and improve signal clarity (1DPC 1R, 6600+ MHz); 3 x PCIe 4.0 x16 slots (64GB/s) supports cutting-edge graphics cards
• QUADRUPLE M.2 CONNECTORS - Premium storage options consist of 1 x M.2 Gen5 x4 128Gbps slot and 3 x M.2 Gen4 x4 64Gbps slots with Shield Frozr (M2_1) to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips
• WI-FI 6E CONNECTIVITY - Network capabilties includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost 5 (supports S/PDIF output)

Description

MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.
PRO X670-P WIFI
Business Elegance
For creative professionals looking to update their system, the MSI PRO X670-P WIFI offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and legacy hardware.
Supports AMD Ryzen 7000 Series Processors (Zen 4, AM5)
14 Duet Rail Power System with 80A Smart Power Stage
Lightning Gen5 & Gen4 M.2 slots with Shield Frozr
3x PCI-e 4.0 x16 slots & 1x PCI-e 3.0 x16 slot
4 DDR5 DIMMS with Memory Boost: Dual Channel (128GB Max. / 6600MHz OC)
USB 3.2 Gen 2x2 Type-C (20Gbps)
2.5G LAN, Wi-Fi 6E & Bluetooth 5.2
X670 Chipset, 14 Duet Rail Power System, Smart Cooling, Lightning Gen5 M.2
Supports AMD Ryzen 7000 Series Processors
The PRO X670-P WIFI motherboard supports AMD Ryzen 7000 series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD X670
14 Duet Rail Power System with 80A Smart Power Stage
With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO X670-P WIFI is able to sustain heavy CPU power loads to support system-demanding settings:
1. Digital PWM IC
2. 14 Duet Rail Power System with 80A SPS
3. 1-Phase MISC Power
4. 2-Phase SOC Power
Integrated Cooling Features
VRM Cooling:
Features an Extended Heatsink design and 7W/mK MOSFET thermal pads for improved thermal dissipation.
PCB Cooling:
An 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.
SSD Cooling:
Double-sided M.2 Shield Frozr prevents thermal throttling.
System Cooling:
Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
Lightning Gen5 & Gen4 M.2 Connectors
The PRO X670-P WIFI motherboard features MSI's latest M.2 slots:
1 x Gen5 x4 128Gb/s slot
3 x Gen4 x4 64Gb/s slots
Cutting-Edge Performance & Hardware Support
Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
3 x PCI-e 4.0 x16 slots* (PCI_E1 & PCI_E3 with Steel Armor)
1 x PCI-e 3.0 x1 slot
*Supports x16/x4/x2
Double-sided M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
Double-sided M.2 Shield Frozr:
MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
4 x DDR5 Dual Channel (6600 MHz OC)
Memory Boost:
A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN:
A 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E:
Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C:
Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio:
7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.
MSI Gaming Series
PRO
MPG
MEG
MEG
Form Factor
ATX
ATX
E-ATX
E-ATX
VRM
14 Duet Rail Power System / 80A SPS
18 Duet Rail Power System / 90A Power Stage
22 Duet Rail Power System / 90A Power Stage
24 Duet Rail Power System / 105A SPS
DIMM Slots
4 x DDR5 (6600+MHz/OC)
4 x DDR5 (6600+MHz/OC)
4 x DDR5 (6666+MHz/OC)
4 x DDR5 (6666+MHz/OC)
PCI-e x16 Slots
3 x 4.0
2 x 5.0 / 1 x 4.0
3 x 5.0
3 x 5.0
M.2 Slots
1 x Gen5 x4 / 3 x Gen4 x4
2 x Gen5 x4 / 2 x Gen4 x4
1 x Gen5 x4 / 3 x Gen4 x4
1 x Gen5 x4 / 3 x Gen4 x4
M.2 Shield Frozr
1 x Double-sided
2 x Double-sided / 2 x Single-sided
Double-sided
Double-sided
Audio
8-Channel (7.1) HD Audio with Audio Boost 5
8-Channel (7.1) HD Audio with Audio Boost 5
8-Channel (7.1) HD Audio with Audio Boost 5 HD
8-Channel (7.1) HD Audio with Audio Boost 5 HD
LAN
RTL8125BG 2.5G LAN
RTL8125BG 2.5G LAN
AQC113 10G LAN
AQC113 10G LAN + Intel I225V 2.5G LAN
WiFi & Bluetooth
AMD Wi-Fi 6E module, Bluetooth 5.2
AMD Wi-Fi 6E module, Bluetooth 5.2
AMD Wi-Fi 6E module, Bluetooth 5.2
AMD Wi-Fi 6E module, Bluetooth 5.2
