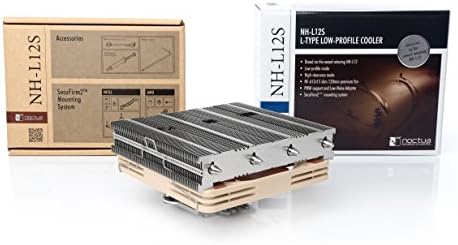

Noctua NH-L12S, Premium Low Profile CPU Cooler with Quiet 120mm PWM Fan (Brown) by Amazon.co.uk
- • Compact, premium-quality low-profile CPU cooler (70mm total height)
- • Further improved successor to the award-winning NH-L12, ideal for ITX and HTPC systems
Compare Noctua NH-L12S, Premium Low Profile CPU Cooler with Quiet 120mm PWM Fan (Brown) with other products:
Description
Low-profile mode
Run with the NF-A12x15 fan installed underneath the fin stack, the NH-L12S stands only 70mm tall. The fan can be installed blowing upwards or blowing downwards in order to match the airflow direction inside the case.
High-clearance mode
Run with the NF-A12x15 fan installed on top, the NH-L12S provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with heat-spreaders of up to 48mm in height (vs. 35mm in low-profile mode).
NF-A12x15 slim 120mm premium fan
Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A12x15 is a premium-grade slim 120mm fan. Its outstanding efficiency allows the NH-L12S to provide even better performance than the previous model with its 92mm fan.
NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Measurements
Height (without fan): 70 mm
Width (without fan): 128 mm
Depth (without fan): 146 mm
Height (with fan): 70 / 88 mm
Width (with fan): 128 mm
Depth (with fan): 146 mm
Weight (without fan): 390 g
Weight (with fan/s): 520 g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications
Scope of delivery
NF-A12x15 PWM premium fan
NA-RC7 Low-Noise Adaptor (L.N.A)
NT-H1 high-grade thermal compound
SecuFirm2 mounting kit
Noctua metal case-badge
Fan compatibility
120x120x15, 120x120x25
Please Note:
The NH-L12S is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.
LGA2066, LGA2011-0 & LGA2011-3
✓
✓
LGA1700
✓
with NM-i17xx-MP78
LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156)
✓
✓
LGA775 & LGA1366
X
X
Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356
X
X
Xeon LGA3647
X
X
Xeon LGA4189
X
X
AM5
✓
✓
AM4
✓
✓
sTRx4, sWRX8, TR4, SP3
X
X
Product information
- Item dimensions L x W x H:12.8 x 14.6 x 7 centimetres
- Brand:Noctua
- Power connector type:4-Pin
- Voltage:12 Volts
- Cooling method:Air
- Compatible devices:Desktop
- Noise level:23.9 dB
- Material:Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Maximum rotational speed:1850 RPM
- Product Dimensions:12.8 x 14.6 x 7 cm; 1.17 Kilograms
- Item model number:NH-L12S
- Manufacturer:NOCTUA
- Series:NH-L12S
- Color:Brown
- Processor Socket:LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
- Processor Count:1
- Computer Memory Type:DDR3 SDRAM
- Hard Drive Size:1 GB
- Hard Drive Interface:ATA
- Are Batteries Included:No
- Item Weight:1.17 kg
