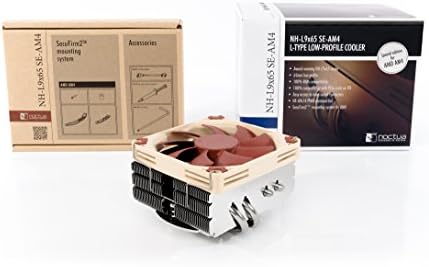

Noctua NH-L9x65 SE-AM4, Premium Low-profile CPU Cooler with 92mm Fan for AMD AM4 (Brown) by Amazon.co.uk
- • Award-winning NH-L9x65 cooler: more than 100 awards and recommendations from international hardware websites and magazines
- • Dedicated special edition for the AMD AM4 socket
- • Quiet, premium-grade NF-A9x14 92mm fan with PWM for automatic speed control
- • Includes Low-Noise Adaptor and renowned NT-H1 thermal compound
- • 6-year manufacturer\u2019s warranty
Compare Noctua NH-L9x65 SE-AM4, Premium Low-profile CPU Cooler with 92mm Fan for AMD AM4 (Brown) with other products:
Description
65mm low profile
Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.
100% RAM compatibility
Being 95mm wide, the NH-L9x65 SE-AM4 complies with the AMD AM4/AM5 socket’s keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, making it fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX
Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone may block the PCIe slot, the 95x95xmm sized NH-L9x65 provides full compatibility with PCIe cards.
NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Measurements
Height (without fan): 51 mm
Width (without fan): 95 mm
Depth (without fan): 95 mm
Height (with fan): 65 mm
Width (with fan): 95 mm
Depth (with fan): 95 mm
Weight (without fan): 340 g
Weight (with fan): 413 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications
Please Note
The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.
Scope of delivery
NF-A9x14 PWM premium fan
NA-RC7 Low-Noise Adaptor (L.N.A)
NT-H1 high-grade thermal compound
SecuFirm2 AM4/AM5 mounting kit
Noctua Metal Case-Badge
Dedicated special edition for AM4/AM5
Please note that being a dedicated special edition for AM4/AM5, the NH-L9x65 SE-AM4 comes with AM4/AM5 mounting hardware only.
LGA2066, LGA2011-0 & LGA2011-3
✓
with NM-i20xx
LGA1700
✓
with NM-i17xx-MP83
LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156)
✓
with NM-i115x-1200
LGA775 & LGA1366
with NM-I3
with NM-I3
Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356
X
X
Xeon LGA3647
X
X
Xeon LGA4189
X
X
AM5
✓
✓
AM4
✓
✓
sTRx4, sWRX8, TR4, SP3
X
X
Product information
- Item dimensions L x W x H:9.5 x 9.5 x 6.5 centimetres
- Brand:Noctua
- Power connector type:4-Pin
- Voltage:12 Volts
- Cooling method:Air
- Compatible devices:Desktop
- Noise level:23.6 dB
- Material:Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Maximum rotational speed:2500 RPM
- Product Dimensions:9.5 x 9.5 x 6.5 cm; 413 Grams
- Item model number:23527
- Manufacturer:Noctua
- Series:NH-L9x65 SE-AM4
- Color:Brown
- RAM Size:1 KB
- Computer Memory Type:72-Pin EDO SIMM Memory
- Are Batteries Included:No
- Item Weight:413 g
